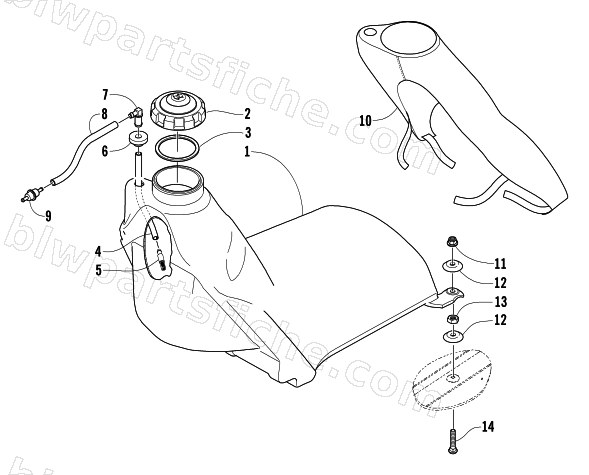

GAS TANK ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-677 | TANK, GAS-S/P ASSY | 1 | $418.95 | |
| 2 | 1670-610 | CAP,VENTED-GAS "110 OCTANE FUEL" | 1 | $86.95 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 1670-656 | GROMMET,FUEL TANK | 1 | $21.95 | |
| 7 | 0109-284 | ELBOW,GAS TANK | 1 | $27.95 | |
| 8 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 8 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 10 | 2706-586 | COVER,GAS TANK-3.5" NECK | 1 | $66.95 | |
| 11 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 12 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 13 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8011-041 | BOLT,CRG 1/4-20X.875 GR1 Z&Y | 1 | $0.45 |
