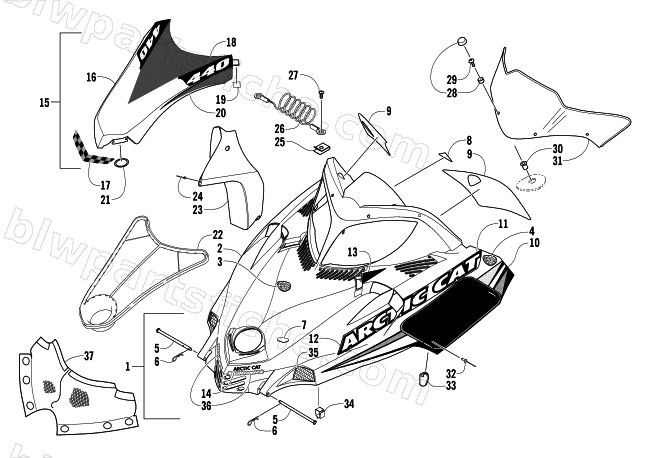

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-586 | HOOD W/DECALS | 1 | $1,328.95 | |
| 2 | 1718-587 | HOOD W/O DECALS | 1 | $782.95 | |
| 3 | 0617-463 | FOAM,HOOD-CENTER FRT | 1 | $41.95 | |
| 4 | 0617-464 | FOAM, HOOD-REAR RH | 1 | $23.95 | |
| 4 | 0617-465 | FOAM, HOOD-REAR LH | 1 | $23.95 | |
| 5 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 6 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 7 | 3606-130 | FOIL,HOOD-UPR LEFT | 1 | $16.95 | |
| 9 | 6611-028 | DECAL,HOOD-CONSOLE-RH | 1 | $29.95 | |
| 9 | 6611-029 | DECAL,HOOD-CONSOLE-LH | 1 | $31.95 | |
| 10 | 5611-920 | DECAL,HOOD-LWR RH | 1 | $167.95 | |
| 10 | 5611-921 | DECAL,HOOD-LWR LH | 1 | $191.95 | |
| 11 | 5611-922 | DECAL,HOOD-UPR RR RH | 1 | $33.95 | |
| 11 | 5611-923 | DECAL,HOOD-UPR RR LH | 1 | $30.95 | |
| 12 | 5611-924 | DECAL,HOOD-UPR FRT RH | 1 | $33.95 | |
| 12 | 5611-925 | DECAL,HOOD-UPR FRT LH | 1 | $129.95 | |
| 13 | 5611-936 | DECAL,HOOD-VENT RR RH | 1 | $20.63 | |
| 13 | 5611-937 | DECAL,HOOD-VENT RR LH | 1 | $20.63 | |
| 14 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 15 | 1718-588 | COVER, HOOD-W/DECALS | 1 | $349.95 | |
| 16 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 17 | 5611-693 | DECAL,COVER-FRT | 1 | $166.95 | |
| 18 | 5611-928 | DECAL,COVER | 1 | $66.95 | |
| 19 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 20 | 5611-930 | DECAL,COVER-SIDE RH | 1 | $30.95 | |
| 20 | 5611-931 | DECAL,COVER-SIDE LH | 1 | $30.95 | |
| 21 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 22 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 23 | 3606-030 | DUCT, BRAKE-PLASTIC | 1 | $94.95 | |
| 24 | 0623-853 | RIVET, BLIND-.162 DIA X .040/.275 GRIP | 1 | $1.09 | |
| 25 | 1623-052 | NUT,U | 1 | $0.95 | |
| 26 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 27 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 30 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 31 | 3606-842 | WINDSHIELD,LOW-RACE | 1 | $94.95 | |
| 32 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 33 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 33 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 34 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 35 | 2606-974 | SCREEN, HOOD RH LOWER-BLK | 1 | $52.95 | |
| 35 | 2606-975 | SCREEN, HOOD LH LOWER-BLK | 1 | $57.95 | |
| 36 | 2706-458 | VELCRO,HOOK-5/8"X10FT | 1 | $58.95 | |
| 37 | 2706-571 | SCREEN,HOOD-ASSY (6snaps) | 1 | $102.95 |
