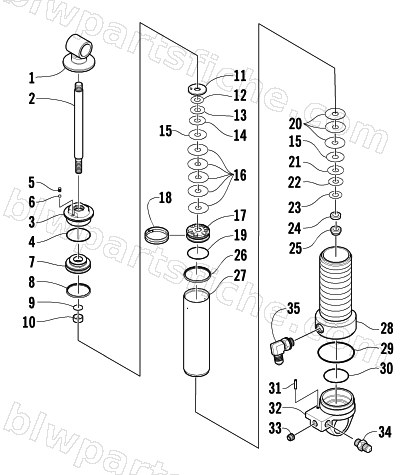

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-188 | SHOCK,FRONT ARM | 1 | $1,000.95 | |
| 1 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 2 | 2604-529 | SHAFT,.498 X 6.690 X 1.20 | 1 | $153.95 | |
| 3 | 2604-568 | BEARING,.498-FRT ARM ASSY | 1 | $184.95 | |
| 4 | 1604-420 | O-RING | 1 | $4.95 | |
| 5 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 6 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 7 | 1704-262 | PISTON,SEPARATOR-ASSY | 1 | $93.95 | |
| 8 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 9 | 2604-213 | O-RING, .139X.484 | 1 | $5.95 | |
| 10 | 2604-203 | BEARING,INTERNAL | 1 | $3.95 | |
| 11 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 12 | 0603-879 | VALVE, SHOCK .800 X.012(040-12-080) | 1 | $6.95 | |
| 13 | 0603-880 | VALVE, SHOCK .900 X.012(040-12-090) | 1 | $12.95 | |
| 14 | 0603-887 | VALVE, SHOCK 1.000 X.015 | 1 | $6.95 | |
| 15 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 16 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 17 | 2604-465 | PISTON,DAMPING-1.459 BORE,.046 | 1 | $31.95 | |
| 18 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 19 | 2604-214 | O-RING-25MM ID X 1.5 MM CS | 1 | $4.95 | |
| 20 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 21 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 22 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 23 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 24 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 25 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 26 | 0604-810 | O-RING | 1 | $4.95 | |
| 27 | 2604-220 | BODY,SHOCK-5.59 | 1 | $241.95 | |
| 28 | 2604-443 | SLEEVE,ADJUSTER-1.459 BORE | 1 | $276.95 | |
| 29 | 0604-809 | O-RING | 1 | $4.95 | |
| 30 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 31 | 1604-097 | PIN,ROLL-SPRING | 1 | $2.95 | |
| 32 | 2604-523 | CAP,BODY-1.459 BORE | 1 | $371.95 | |
| 33 | 2604-207 | PLUG,BRASS-1/8-27 | 1 | $22.95 | |
| 34 | 2603-206 | FITTING,ADAPTOR-STRAIGHT | 1 | $68.95 | |
| 35 | 2603-205 | FITTING,ELBOW-90 DEG | 1 | $31.95 |
