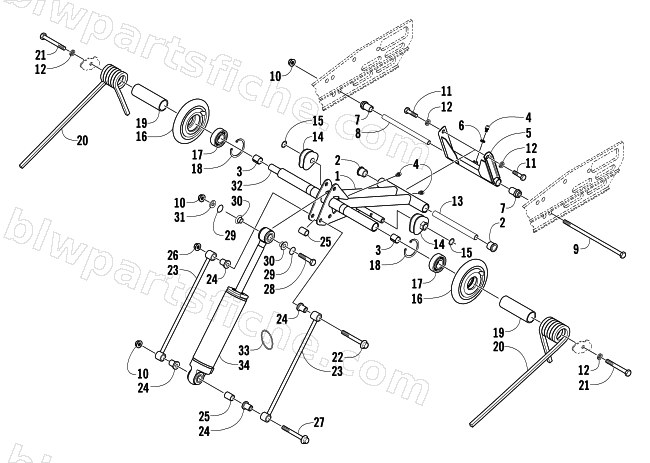

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — REAR SUSPENSION REAR ARM ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-997 | ARM,ILDER-FABR BLK | 1 | $239.95 | |
| 2 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 3 | 2604-147 | BEARING,GARLOCK-11DU14 | 1 | $8.21 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 0704-976 | ARM,REAR-(BLK)-FAB | 1 | $68.95 | |
| 6 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 7 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 8 | 2604-665 | TUBE,AXLE-REAR ARM | 1 | $29.95 | |
| 9 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 10 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 11 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 1604-208 | AXLE,ALUM-.625 X 6.817 | 1 | $42.95 | |
| 14 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 14 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 15 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 16 | 2604-143 | WHEEL,IDL-5.35 W/1" ID (NO INSR) | 1 | $53.95 | |
| 17 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 18 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 19 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 21 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 22 | 1623-219 | SCREW,CAP-HFH 3/8-16X3.570 GR 5 Z&Y | 1 | $3.44 | |
| 23 | 0704-361 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 25 | 0604-644 | SLEEVE,SHOCK EYELET-REAR-ARM | 1 | $29.95 | |
| 26 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 27 | 8020-234 | SCREW,CAP-HFH 3/8-16 X 4.00 Z&Y | 1 | $6.89 | |
| 28 | 1623-120 | SCREW,CAP-HH 3/8-16X1.94 GR 5 Z&Y | 1 | $13.73 | |
| 29 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 30 | 1604-662 | SPACER,SS SPHERICAL BEARING-RR ARM | 1 | $22.01 | |
| 31 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 32 | 2604-139 | AXLE,INNER CARRIAGE | 1 | $89.95 | |
| 33 | 1604-935 | SUPPORT, HOSE -REAR ARM (O-RING) | 1 | $4.26 | |
| 34 | 1704-189 | SHOCK,REAR ARM | 1 | $1,343.95 |
