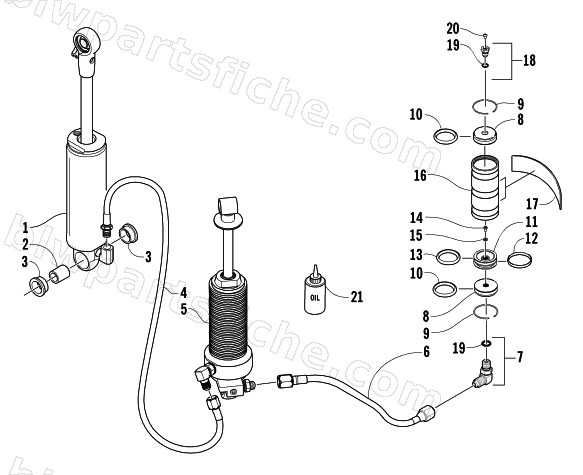

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-187 | SHOCK,REAR SUSP-ASSY | 1 | $1,948.95 | |
| 1 | 1704-189 | SHOCK,REAR ARM | 1 | $1,343.95 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 4 | 2604-682 | HOSE, -5 FEMALE SWIVEL TO 1/8 NPT | 1 | $121.95 | |
| 5 | 1704-188 | SHOCK,FRONT ARM | 1 | $1,000.95 | |
| 6 | 2604-210 | HOSE,STRAIGHT FEMALE/SWIVEL-25.5 | 1 | $203.95 | |
| 7 | 2603-205 | FITTING,ELBOW-90 DEG | 1 | $31.95 | |
| 8 | 1603-936 | END CAP,RESERVOIR-CLEAR ANOD | 1 | $52.95 | |
| 9 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 10 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 11 | 2604-517 | PISTON, INTERNAL FLOATING | 1 | $29.95 | |
| 12 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 13 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 14 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 15 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 16 | 1603-935 | RESERVOIR,3 GROOVES-BLK ANOD | 1 | $152.95 | |
| 17 | 1603-932 | DECAL,SHOCK-6.25X1.00 | 1 | $21.95 | |
| 18 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 19 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 20 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 21 | 4639-369 | S/M SYN SHOCK OIL MED/LT WT-1 QUART | 1 | $27.99 |
