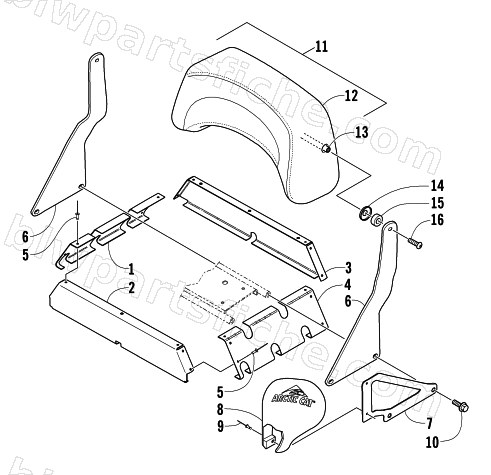

BACKREST ASSEMBLY
2004 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-286 | RISER,REAR-SIDE-RH-PTD BLK | 1 | $23.95 | |
| 2 | 2706-285 | RISER,CAP-REAR-PTD BLK | 1 | $33.95 | |
| 3 | 2706-284 | CAP,RISER-REAR-PTD BLK | 1 | $41.95 | |
| 4 | 2706-287 | RISER,REAR-SIDE-LH-PTD BLK | 1 | $23.95 | |
| 5 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 6 | 2706-170 | ARM,BACKREST-R/H-PTD BLK | 1 | $115.95 | |
| 6 | 2706-171 | ARM,BACKREST-L/H-PTD BLK | 1 | $121.95 | |
| 7 | 2706-214 | BRKT,DEFLECTOR-WIND-R/H-PTD BLK | 1 | $13.95 | |
| 7 | 2706-215 | BRKT,DEFLECTOR-WIND-L/H-PTD BLK | 1 | $13.95 | |
| 8 | 1606-238 | DEFLECTOR,WIND-RH | 1 | $56.95 | |
| 8 | 1606-239 | DEFLECTOR,WIND-LH | 1 | $56.95 | |
| 9 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 10 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 11 | 2706-497 | BACKREST, W/COVER | 1 | $381.95 | |
| 12 | 2706-498 | COVER, BACKREST | 1 | $280.95 | |
| 13 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 14 | 0723-003 | WASHER,CUP-PTD BLK | 1 | $9.59 | |
| 15 | 0616-547 | BLOCK,TENSION-BACKREST | 1 | $5.65 | |
| 16 | 0623-566 | SCREW,MACH-HSBH 3/8-16X1.25 BLK Z | 1 | $1.64 |
