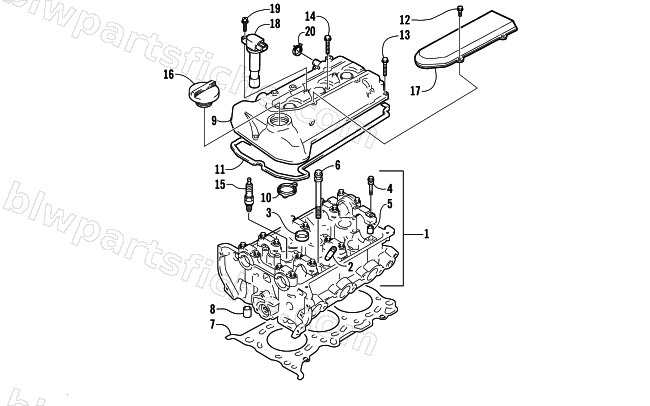

CYLINDER HEAD ASSEMBLY
2004 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-842 | HEAD ASSY,CYL | 1 | $3,041.95 | |
| 2 | 3006-132 | GUIDE,VALVE '02 660 L/C | 1 | $68.95 | |
| 3 | 3004-782 | PLUG,20MM | 1 | $11.59 | |
| 4 | 3006-134 | BOLT,CAMSHAFT HOUSING '02 660 L/C | 1 | $5.95 | |
| 5 | 3423-043 | PIN,ALIGNMENT,8MM | 1 | $9.59 | |
| 6 | 3006-133 | BOLT, '02 660 L/C | 1 | $13.73 | |
| 7 | 3006-559 | GASKET,CYL HEAD-660 L/C | 1 | $132.95 | |
| 8 | 3006-115 | PIN,10.4X13X18 '02 660 L/C | 1 | $9.59 | |
| 9 | 3006-136 | COVER COMP,CYLINDER HEAD '02 660 L/C | 1 | $618.95 | |
| 10 | 3006-137 | GASKET,SPARK PLUG HOLE '02 660 L/C | 1 | $39.95 | |
| 11 | 3006-138 | GASKET,CYLINDER HEAD COVER '02 660 L/C | 1 | $62.95 | |
| 12 | 3006-101 | BOLT,6X16 '02 660 L/C | 1 | $3.85 | |
| 13 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 14 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 | |
| 15 | 0217-719 | SPARK PLUG, KR8AI | 1 | $23.39 | |
| 16 | 3006-952 | CAP COMP,OIL FILTER | 1 | $42.95 | |
| 17 | 3005-946 | COVER, COIL | 1 | $24.95 | |
| 18 | 3007-590 | COIL ASSY,IGNITION | 1 | $252.95 | |
| 19 | 3007-409 | BOLT | 1 | $3.16 | |
| 20 | 3008-488 | CLIP (ID:17.8) | 1 | $6.34 |
