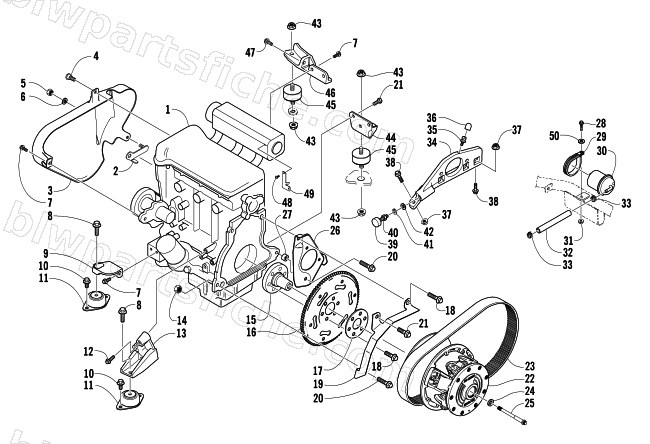

ENGINE AND RELATED PARTS
2004 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-464 | R/B 0662-463 | 1 | $4,576.95 | |
| 2 | 1706-930 | BRKT, ALT COVER-WELDT | 1 | $13.73 | |
| 3 | 2606-720 | COVER, ALTERNATOR BELT | 1 | $37.95 | |
| 4 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 5 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 9 | 0708-125 | BRKT,ENG,MTG-MAG FRONT(MACH) | 1 | $40.95 | |
| 10 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 11 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 12 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 13 | 0708-408 | BRKT, ENG, MTG-PTO FRONT-MACH | 1 | $60.95 | |
| 14 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 15 | 1670-245 | ADAPTER, CRANK-PTO | 1 | $178.95 | |
| 16 | 0745-192 | RING GEAR-PTD-4 STR(03) | 1 | $572.95 | |
| 17 | 3006-243 | PLATE,T/C DRIVE REAR 02 660 L/C | 1 | $52.95 | |
| 18 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 19 | 0745-164 | GUARD, RING GEAR-PAINTED | 1 | $56.95 | |
| 20 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 21 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 22 | 0746-278 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $825.95 | |
| 23 | 0627-033 | BELT, DRIVE-CVT 12.800" CTRS | 1 | $106.95 | |
| 24 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 25 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 26 | 0745-162 | BRKT,STARTER-PTD BLK | 1 | $149.95 | |
| 27 | 1623-063 | BUSHING, 12MM X 13MM X 1.26 | 1 | $3.95 | |
| 28 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 29 | 1623-134 | CLAMP, FUEL FILTER | 1 | $10.95 | |
| 30 | 1670-469 | FILTER, FUEL-AC 4 STROKE | 1 | $43.95 | |
| 31 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 32 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 33 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 35 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 36 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 37 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 38 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 39 | 0608-358 | BUMPER, TORQUE | 1 | $20.63 | |
| 40 | 8042-516 | NUT,3/8-24 HEX-REG-G5 Z&Y | 1 | $0.40 | |
| 41 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 42 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 43 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 44 | 0708-128 | BRKT,ENG,MTG-PTO REAR(MACH) | 1 | $47.95 | |
| 45 | 0608-118 | MOUNT,ENGINE-DOUBLE MALE | 1 | $26.95 | |
| 46 | 0708-407 | BRKT, ENG, MTG-MAG REAR-MACH | 1 | $69.95 | |
| 47 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 48 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 49 | 2706-197 | BRKT,FILLERNECK-PTD BLK | 1 | $17.95 | |
| 50 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 |
