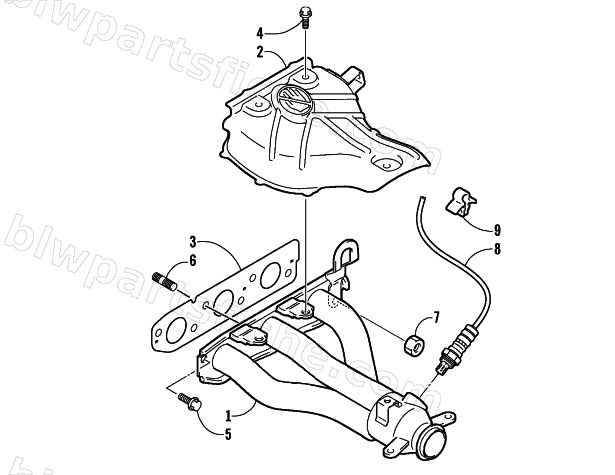

2004 Arctic Cat BEARCAT WIDE TRACK — EXHAUST MANIFOLD ASSEMBLY
2004 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-586 | MANIFOLD,EXHAUST | 1 | $582.95 | |
| 2 | 3006-587 | COVER,EXHAUST MANIFOLD | 1 | $79.95 | |
| 3 | 3007-587 | GASKET | 1 | $33.95 | |
| 4 | 3006-100 | BLT,6X10 '02 660 L/C | 1 | $12.95 | |
| 5 | 3006-103 | BOLT,8X16 '02 660 L/C | 1 | $4.95 | |
| 6 | 3006-106 | BOLT,STUD '02 660 L/C | 1 | $5.65 | |
| 7 | 3006-111 | NUT,8MM '02 660 L/C | 1 | $2.75 | |
| 8 | 3006-588 | SENSOR,OXYGEN | 1 | $473.95 | |
| 9 | 3006-129 | CLAMP, '02 660 L/C | 1 | $6.95 |
