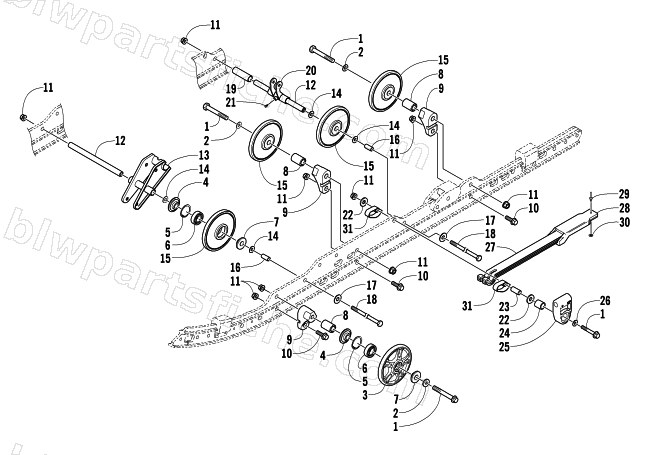

IDLER WHEEL ASSEMBLY
2004 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 2 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 3 | 1604-693 | WHEEL,IDL-5.63 SPOKED(2-5/8DIA INSR)SILV | 1 | $53.95 | |
| 4 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 5 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 6 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 7 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 8 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 9 | 0704-966 | BLOCK, MTG-IDLER WHEEL-MACH | 1 | $24.77 | |
| 10 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 11 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 12 | 1604-980 | AXLE, STEEL,-THRU BOLT | 1 | $22.01 | |
| 13 | 0704-396 | BRKT,MTG-FRONT SHOCK-PTD BLK | 1 | $199.95 | |
| 14 | 0623-675 | WASHER, FLAT-.641 X 1.187 X .060 Z&Y | 1 | $0.95 | |
| 15 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 16 | 1604-979 | SPACER, ALUM,THK WALL | 1 | $46.95 | |
| 17 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 18 | 1623-064 | SCREW, CAP-HH 3/8-16X14.5 GR5 ZY | 1 | $30.95 | |
| 19 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 20 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 21 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 22 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 | |
| 23 | 0604-739 | BUSHING,OVERLOAD | 1 | $4.26 | |
| 24 | 1604-430 | SPACER,SPRING SLIDE | 1 | $17.87 | |
| 25 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 26 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 27 | 1704-279 | R/B 3704-276 | 1 | $125.95 | |
| 28 | 2604-788 | BLOCK,WEAR-SPRING SLIDE - .19 HOLE | 1 | $24.77 | |
| 30 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 31 | 1604-412 | CLIP,RETAINING H.D.-SLOTTED | 1 | $44.95 |
