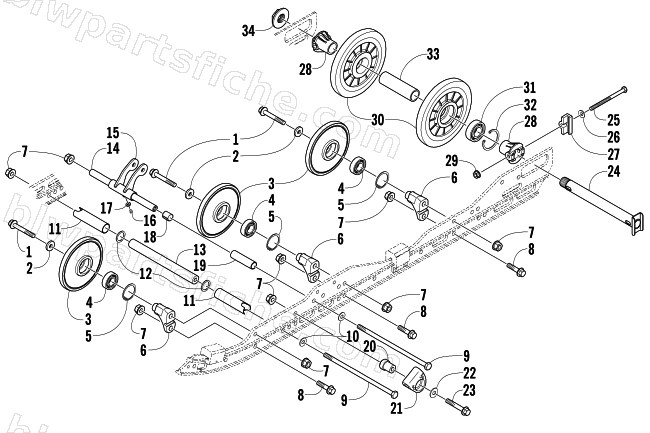

IDLER WHEEL ASSEMBLY
2004 FIRECAT 500 SNO PRO 1
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 2 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 3 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 4 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 5 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 6 | 2604-579 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $45.95 | |
| 7 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 8 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 9 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 10 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 11 | 1604-793 | SPACER,FRONT ARM SHOCK | 1 | $29.95 | |
| 12 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 13 | 1604-792 | AXLE, STEEL-7/8 X 3/8 X 8.750 ZY | 1 | $58.95 | |
| 14 | 1604-209 | AXLE,STEEL-8.75 (THRU BOLT) | 1 | $73.95 | |
| 15 | 0704-994 | PIVOT,REAR SHOCK-FABR | 1 | $74.95 | |
| 16 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 17 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 18 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 19 | 2604-109 | SPACER,ALUM-2.805" | 1 | $12.35 | |
| 20 | 2604-378 | BLOCK,SLIDE-SPRING-1.53" | 1 | $16.49 | |
| 21 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 22 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 23 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 24 | 0704-884 | AXLE,REAR-PTD BLK | 1 | $85.95 | |
| 26 | 0623-987 | WASHER, BELLVILE-.312 X .930 | 1 | $2.19 | |
| 27 | 2604-116 | ADJUSTER, TRACK - CAST | 1 | $14.95 | |
| 28 | 4604-087 | BUSHING,ADJUSTER | 1 | $17.87 | |
| 29 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 30 | 2604-117 | WHEEL,IDLER-7.125(NO INSR) | 1 | $53.95 | |
| 31 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 32 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 33 | 2604-115 | SPACER, ALUM- 1.00 ID X 1.25 OD | 1 | $24.77 | |
| 34 | 1623-054 | NUT,1-14X.48 Z&Y | 1 | $53.95 |
