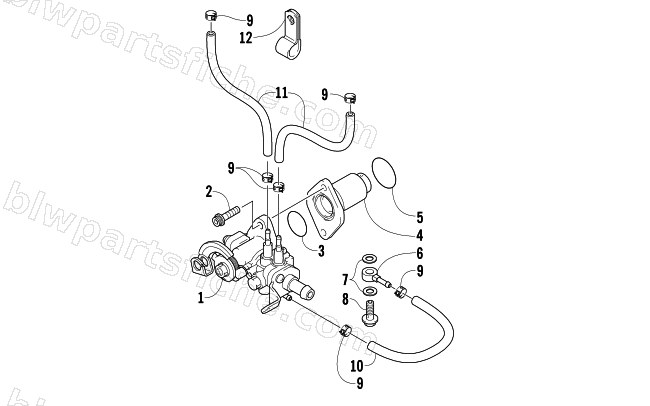

OIL PUMP
2004 FIRECAT 500 SNO PRO 1.375
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-539 | PUMP ASSY,OIL | 1 | $700.95 | |
| 2 | 3006-085 | BOLT, '02 570 F/C | 1 | $2.95 | |
| 3 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 4 | 3004-804 | RETAINER PUMP,OIL | 1 | $118.95 | |
| 5 | 3005-126 | O RING | 1 | $4.26 | |
| 6 | 3004-805 | VALVE OIL NOZZLE | 1 | $49.95 | |
| 7 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 8 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 9 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 10 | 3005-357 | HOSE, M2.5X7X600 | 1 | $24.77 | |
| 11 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 12 | 3005-696 | CLAMP | 1 | $12.35 |
