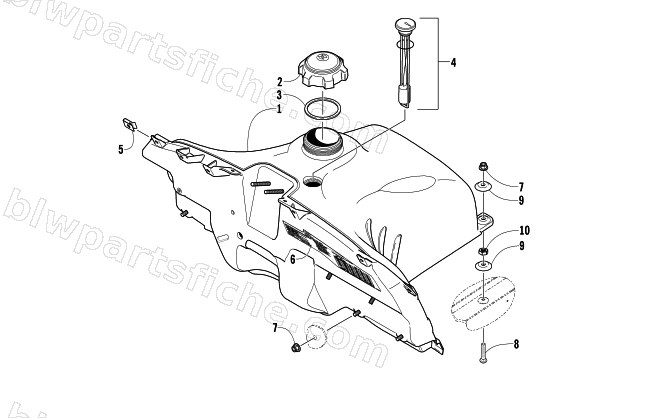

2004 Arctic Cat FIRECAT 600 EFI EARLY BUILD — GAS TANK ASSEMBLY
2004 FIRECAT 600 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-628 | TANK,GAS-S/P ASSY/BLK - EFI | 1 | $390.95 | |
| 2 | 1670-447 | CAP,VENTED-GAS | 1 | $53.95 | |
| 4 | 1670-523 | GAUGE,FUEL W/ GASKET | 1 | $105.95 | |
| 5 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 6 | 5611-232 | DECAL,CLUTCHING-04 FIRECAT | 1 | $35.95 | |
| 7 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 8 | 8011-041 | BOLT,CRG 1/4-20X.875 GR1 Z&Y | 1 | $0.45 | |
| 9 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 10 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
