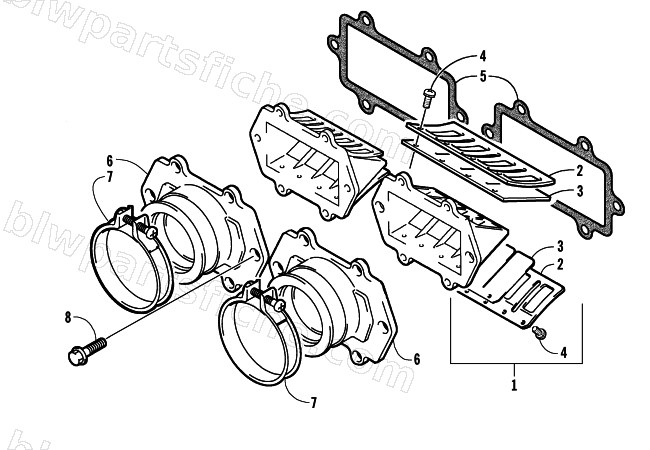

REED VALVE ASSEMBLY
2004 FIRECAT 600 EFI EARLY BUILD
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3006-510 |
VALVE ASSY,REED |
1 |
$279.95 |
|
| 2 |
3006-553 |
STOPPER,REED VALVE |
1 |
$31.95 |
|
| 3 |
3005-878 |
VALVE, REED |
1 |
$53.95 |
|
| 4 |
3004-506 |
SCREW, 3X8 |
1 |
$2.47 |
|
| 5 |
3005-879 |
GASKET, REED VALVE |
1 |
$17.87 |
|
| 6 |
3006-527 |
PIPE,INTAKE |
1 |
$133.95 |
|
| 7 |
3004-463 |
CLAMP,M58 |
1 |
$34.95 |
|
| 8 |
3007-380 |
BOLT |
1 |
$3.16 |
|
