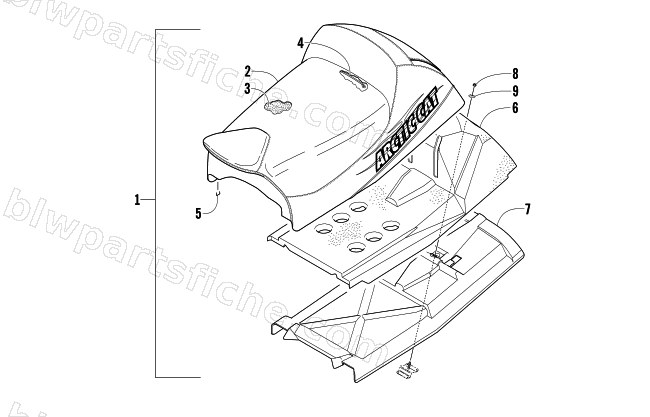

2004 Arctic Cat FIRECAT 600 EFI EARLY BUILD — SEAT ASSEMBLY
2004 FIRECAT 600 EFI EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-304 | SEAT,GRN-MFG ASSY | 1 | $604.95 | |
| 2 | 2706-315 | COVER,SEAT-GRN W/DECAL | 1 | $374.95 | |
| 3 | 0717-182 | FOAM,SEAT(87-92 ILD).50@4.7 | 1 | $109.95 | |
| 4 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 0617-438 | FOAM,SEAT-LWR | 1 | $143.95 | |
| 7 | 2606-907 | BASE,SEAT-PLASTIC | 1 | $296.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 |
