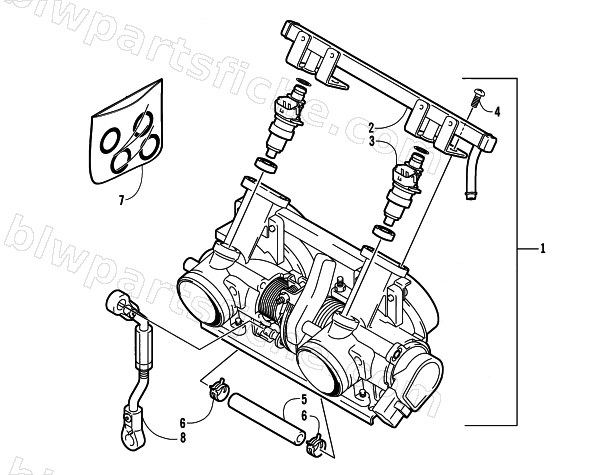

THROTTLE BODY ASSEMBLY
2004 FIRECAT 600 EFI EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-511 | BODY ASSY,THROTTLE | 1 | $2,475.95 | |
| 1 | 3006-512 | BODY ASSY,THROTTLE | 1 | $1,929.95 | |
| 1 | 3006-513 | BODY ASSY,THROTTLE | 1 | $2,475.95 | |
| 2 | 3006-517 | PIPE ASSY,FUEL DELIVERY | 1 | $948.95 | |
| 3 | 3007-698 | INJECTOR,FUEL (CIR) | 1 | $571.95 | |
| 3 | 3007-699 | INJECTOR,FUEL (SQU) | 1 | $571.95 | |
| 3 | 3007-700 | INJECTOR,FUEL (TRI) | 1 | $750.95 | |
| 4 | 3007-443 | SCREW | 1 | $2.06 | |
| 5 | 3006-554 | HOSE | 1 | $74.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3005-692 | O-RING SET | 1 | $118.95 | |
| 8 | 3006-514 | ROD COMP,OIL PUMP CONTROL | 1 | $68.95 |
