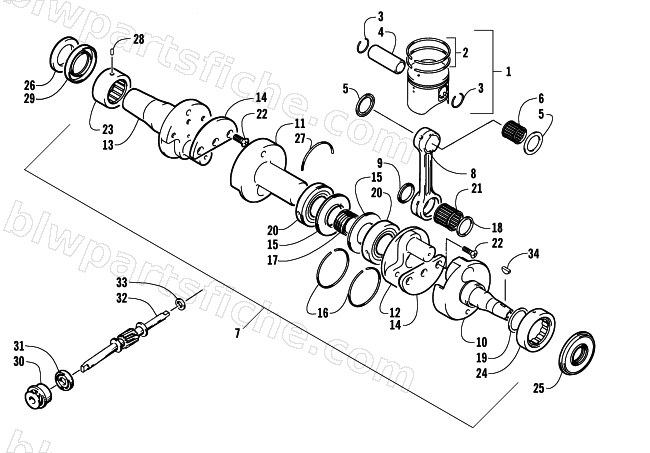

PISTON AND CRANKSHAFT
2004 FIRECAT 600 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-645 | PISTON ASSY, 03 600 L/C D | 1 | $251.95 | |
| 2 | 3006-004 | RING SET (570) | 1 | $101.95 | |
| 3 | 3005-304 | CIRCLIP,M22 | 1 | $3.30 | |
| 4 | 3006-501 | PIN,PISTON | 1 | $33.95 | |
| 5 | 3008-500 | WASHER,22MM | 1 | $5.92 | |
| 6 | 3008-503 | R/B 0932-011 | 1 | $39.95 | |
| 7 | 3007-561 | CRANKSHAFT ASSY | 1 | $2,796.95 | |
| 8 | 3007-530 | CONNROD | 1 | $251.95 | |
| 9 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 10 | 3006-503 | CRANKSHAFT,R | 1 | $548.95 | |
| 11 | 3006-504 | CRANKSHAFT,M | 1 | $611.95 | |
| 12 | 3007-438 | WHEEL,CRANKSHAFT | 1 | $479.95 | |
| 13 | 3006-506 | CRANKSHAFT,L | 1 | $557.95 | |
| 14 | 3006-719 | BALANCER,CRANKSHAFT | 1 | $54.95 | |
| 15 | 3006-508 | RACE,MIDDLE CRANK SEAL | 1 | $78.95 | |
| 16 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 17 | 3006-519 | GEAR,OIL PUMP DRIVE | 1 | $208.95 | |
| 18 | 3006-489 | SHIM,30X38X1 | 1 | $10.97 | |
| 19 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 20 | 3008-421 | BEARING,BALL,M35 | 1 | $125.95 | |
| 21 | 3007-532 | BEARING,CRANK PIN | 1 | $180.95 | |
| 22 | 3007-440 | SCREW | 1 | $2.06 | |
| 23 | 3007-439 | BEARING-LH | 1 | $303.95 | |
| 24 | 3006-551 | BEARING,RH | 1 | $277.95 | |
| 25 | 3003-367 | SEAL,CRANKSHAFT-RH,M35 | 1 | $69.95 | |
| 26 | 3006-552 | SPACER,OIL SEAL | 1 | $13.73 | |
| 27 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 | |
| 28 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 29 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 30 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 31 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 32 | 3006-520 | GEAR,OIL PUMP DRIVEN | 1 | $187.95 | |
| 33 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 34 | 3010-070 | KEY,TYPE 3 M3(FASTENER) | 1 | $3.99 |
