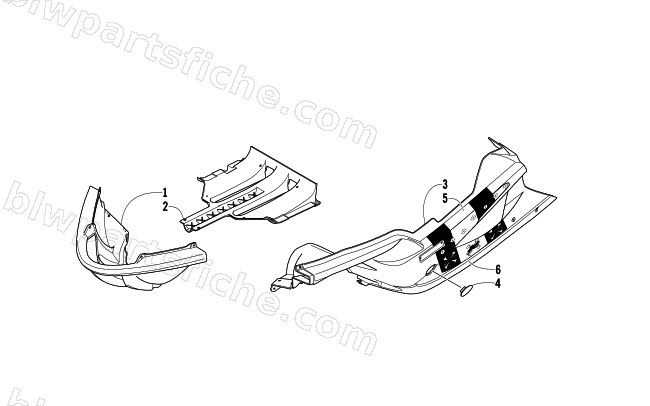

2004 Arctic Cat FIRECAT 600 EFI LIMITED EDITION — BELLY PAN FIGHTER RED
2004 FIRECAT 600 EFI LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 2 | 3606-092 | BELLY PAN,CENTER-RED | 1 | $39.95 | |
| 3 | 2606-778 | BELLYPAN,RH-INJ MOLD-RED | 1 | $206.95 | |
| 3 | 2606-779 | BELLYPAN, LH-INJ MOLD-RED | 1 | $187.95 | |
| 4 | 2606-775 | PANEL, CLUTCH ACCESS-RED | 1 | $17.95 | |
| 5 | 5611-760 | DECAL,BELLY PAN-UPR RED RH | 1 | $54.95 | |
| 5 | 5611-761 | DECAL,BELLY PAN-UPR RED LH | 1 | $52.95 | |
| 6 | 5611-762 | DECAL,BELLY PAN-LWR RED RH | 1 | $191.95 | |
| 6 | 5611-763 | DECAL,BELLY PAN-LWR RED LH | 1 | $185.95 |
