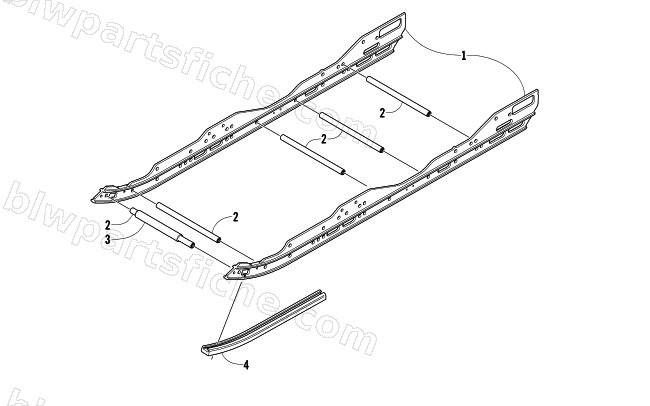

2004 Arctic Cat FIRECAT 600 EFI SNO PRO 1 LIMITED EDITION — REAR SUSPENSION
2004 FIRECAT 600 EFI SNO PRO 1 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-076 | RAIL,FORMED-PTD BLK | 1 | $299.95 | |
| 2 | 0704-501 | AXLE,ALUM.-BLK | 1 | $40.95 | |
| 3 | 1704-077 | SPACER,ALUM-PTD BLK | 1 | $13.95 | |
| 4 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 |
