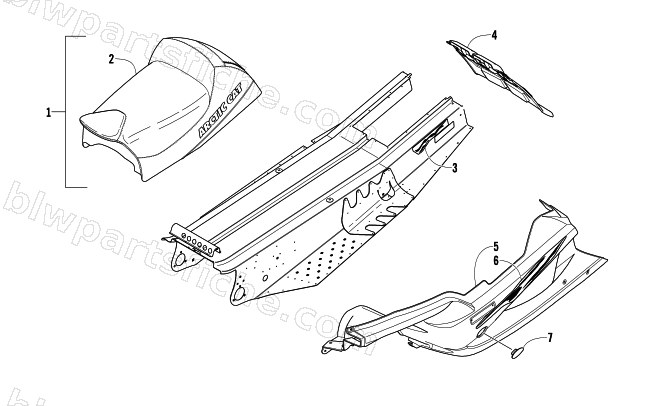

2004 Arctic Cat FIRECAT 600 EFI SNO PRO 1.375 LIMITED EDITION — BELLY PAN, SEAT, TUNNEL, AND SNOWFLAP TIGER BLACK
2004 FIRECAT 600 EFI SNO PRO 1.375 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2706-488 | COVER,SEAT-BLK W/GRAPHIC | 1 | $539.95 | |
| 3 | 5611-812 | DECAL,TUNNEL-BLK RH | 1 | $51.95 | |
| 3 | 5611-813 | DECAL,TUNNEL-BLK LH | 1 | $51.95 | |
| 5 | 2706-224 | BELLY PAN,SNO PRO BLK-RH ROUTED | 1 | $187.95 | |
| 5 | 2706-225 | BELLY PAN,SNO PRO BLK-LH ROUTED | 1 | $209.95 | |
| 6 | 5611-810 | DECAL,BELLY PAN-BLK RH | 1 | $63.95 | |
| 6 | 5611-811 | DECAL,BELLY PAN-BLK LH | 1 | $63.95 | |
| 7 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 |
