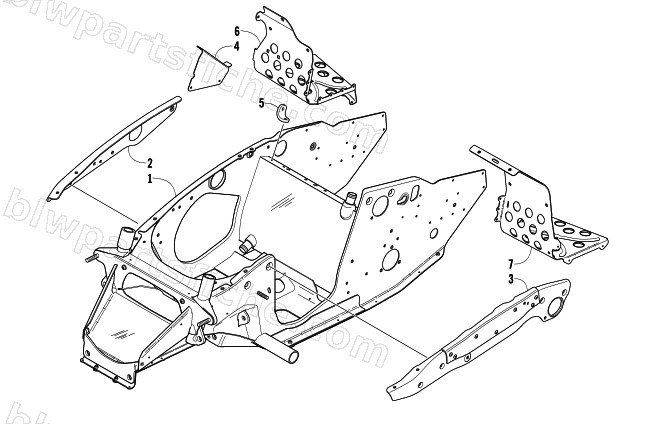

2004 Arctic Cat FIRECAT 600 EFI SNO PRO 1.375 LIMITED EDITION — FRONT FRAME AND FOOTREST
2004 FIRECAT 600 EFI SNO PRO 1.375 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-819 | CHASSIS, S/P ASSY-PTD BLK | 1 | $1,390.95 | |
| 2 | 2706-682 | BRACE,SIDE PLATE-RH-PTD BLK | 1 | $47.95 | |
| 3 | 2706-561 | BRACE,SIDE PLATE-UPR LH PTD BLK | 1 | $282.95 | |
| 4 | 2706-552 | GUARD,HOSE-PTD BLK | 1 | $18.95 | |
| 6 | 2706-550 | FOOTREST-RIGHT PTD BLK | 1 | $113.95 | |
| 7 | 2706-551 | FOOTREST-LEFT PTD BLK | 1 | $124.95 |
