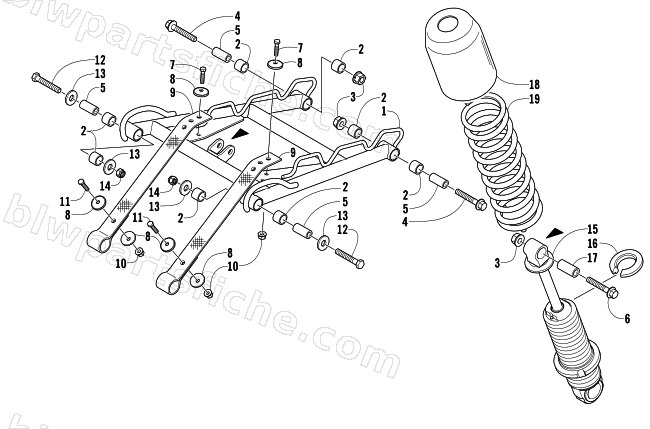

REAR SUSPENSION FRONT ARM ASSEMBLY
2004 FIRECAT 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-092 | ARM, FRONT-FABR BLK | 1 | $302.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 7 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 9 | 2604-609 | STRAP,LIMITER-1.250 X 14.77 | 1 | $22.01 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 12 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 13 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 14 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 15 | 2704-066 | SHOCK,FRT ARM-11.29"-IFP- FOX | 1 | $392.59 | |
| 16 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 17 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 18 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 19 | 0704-523 | SPRING, COMP-FRONT ARM #110 BLK | 1 | $58.95 |
