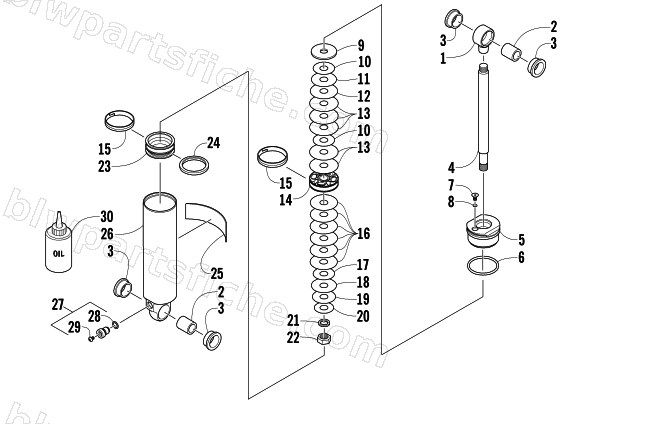

2004 Arctic Cat FIRECAT 600 SNO PRO 1 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2004 FIRECAT 600 SNO PRO 1
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-141 | SHOCK,REAR-IFP 2"BORE | 1 | $945.95 | |
| 1 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 4 | 2604-622 | SHAFT,SHOCK-.498 X 7.260 | 1 | $149.95 | |
| 5 | 2604-627 | BEARING,ENDCAP-.498"X2"OD - W/BLEED-ASSY | 1 | $124.95 | |
| 6 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 7 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 8 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 9 | 2603-466 | WASHER,TOPOUT-1.570ODX.378IDX.093TH | 1 | $17.87 | |
| 10 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 11 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 12 | 2604-647 | VALVE,1.425 X .010 (3/8ID) | 1 | $12.95 | |
| 13 | 2604-631 | VALVE,1.600 X .010 (3/8ID) | 1 | $16.95 | |
| 14 | 2604-645 | PISTON,DAMPING-1.834 BORE .055 ORIFACE | 1 | $71.95 | |
| 15 | 2604-628 | STRAP,PISTON - 5.83"LONG | 1 | $18.95 | |
| 16 | 2604-633 | VALVE,1.425 X .015 (3/8ID) | 1 | $12.95 | |
| 17 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 18 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 19 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 20 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 2604-629 | PISTON,IFP-NO BLEED 1.834" | 1 | $70.95 | |
| 24 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 25 | 2604-650 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $16.95 | |
| 26 | 2604-621 | BODY,ALUM-IMP EXTR (1.834BORE/9.233TLG | 1 | $372.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 29 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 30 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
