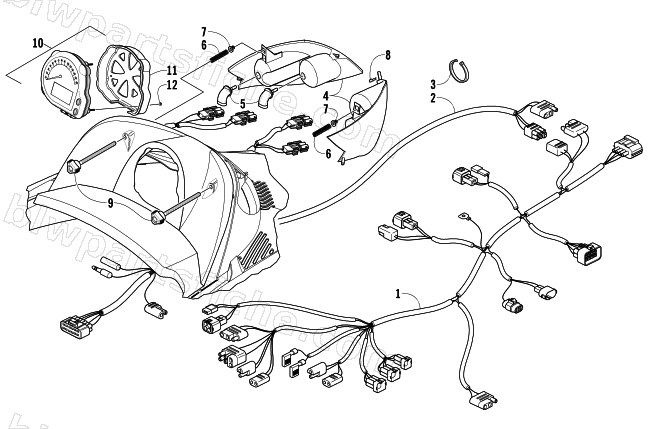

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2004 FIRECAT 600 SNO PRO 1.375
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0686-919 | HARNESS,MAIN-04 FC 600/700 CARB | 1 | $556.95 | |
| 2 | 0686-962 | HARNESS, HOOD (2004 F2) | 1 | $277.95 | |
| 3 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 4 | 0609-530 | HEADLIGHT,RH-ASSY | 1 | $183.95 | |
| 4 | 0609-531 | HEADLIGHT,LH-ASSY | 1 | $183.95 | |
| 5 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 6 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 7 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 8 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 9 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 10 | 0620-292 | SPEEDO/TACH-DIGITAL-BLK(4 CAL) | 1 | $773.95 | |
| 11 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 12 | 0620-280 | NUT,W/WASHER | 1 | $13.73 |
