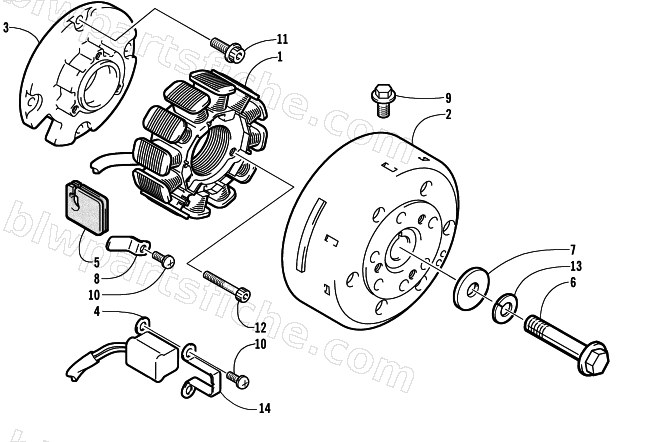

2004 Arctic Cat FIRECAT 700 EFI EXT — MAGNETO
2004 FIRECAT 700 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-660 | STATOR, O3' 700 FIRECAT | 1 | $883.95 | |
| 2 | 3006-523 | FLYWHEEL ASSY | 1 | $1,324.95 | |
| 3 | 3006-524 | BASE,STATOR | 1 | $165.95 | |
| 4 | 3006-453 | SENSOR,IGNITION | 1 | $279.95 | |
| 5 | 3005-775 | GROMMET, MAGNETO LEAD WIRE | 1 | $19.25 | |
| 6 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 7 | 3005-987 | WASHER | 1 | $5.95 | |
| 8 | 3005-960 | PLATE, MAGNETO LEAD WIRE | 1 | $6.95 | |
| 9 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 10 | 3007-553 | SCREW | 1 | $2.33 | |
| 11 | 3007-449 | BOLT | 1 | $3.16 | |
| 12 | 3007-450 | BOLT | 1 | $3.85 | |
| 13 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 14 | 3003-972 | CLAMP | 1 | $24.77 |
