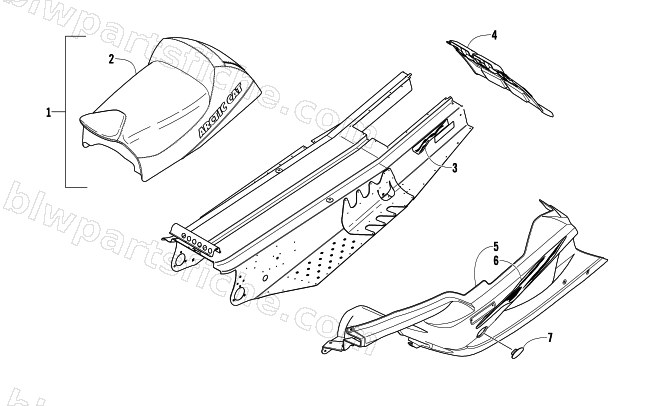

2004 Arctic Cat FIRECAT 700 EFI LIMITED EDITION — BELLY PAN, SEAT, TUNNEL, AND SNOWFLAP TIGER RED
2004 FIRECAT 700 EFI LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2706-489 | COVER,SEAT-RED W/GRAPHIC | 1 | $466.95 | |
| 3 | 5611-834 | DECAL,TUNNEL-RED RH | 1 | $60.95 | |
| 3 | 5611-835 | DECAL,TUNNEL-RED LH | 1 | $60.95 | |
| 5 | 2606-778 | BELLYPAN,RH-INJ MOLD-RED | 1 | $206.95 | |
| 5 | 2606-779 | BELLYPAN, LH-INJ MOLD-RED | 1 | $187.95 | |
| 6 | 5611-832 | DECAL,BELLY PAN-RED RH | 1 | $64.95 | |
| 6 | 5611-833 | DECAL,BELLY PAN-RED LH | 1 | $64.95 | |
| 7 | 2606-775 | PANEL, CLUTCH ACCESS-RED | 1 | $17.95 |
