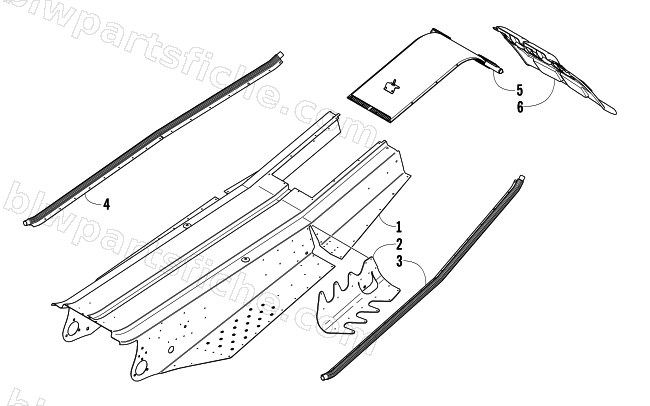

2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1 LIMITED EDITION — TUNNEL, COOLING, AND SNOWFLAP
2004 FIRECAT 700 EFI SNO PRO 1 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-621 | TUNNEL, S/P ASSY-PTD BLK | 1 | $797.95 | |
| 2 | 2706-678 | BRACKET,SUSP.MTG-RT REAR-PTD BLK | 1 | $121.95 | |
| 2 | 2706-679 | BRACKET,SUSP.MTG-LFT REAR-PTD BLK | 1 | $95.95 | |
| 3 | 2706-559 | HEAT EXCHANGER-LEFT TUBE-PTD BLK | 1 | $110.95 | |
| 4 | 2706-558 | HEAT EXCHANGER-RIGHT TUBE-PTD BLK | 1 | $110.95 | |
| 5 | 3706-005 | EXCHANGER,HEAT-REAR-PTD BLK | 1 | $390.95 |
