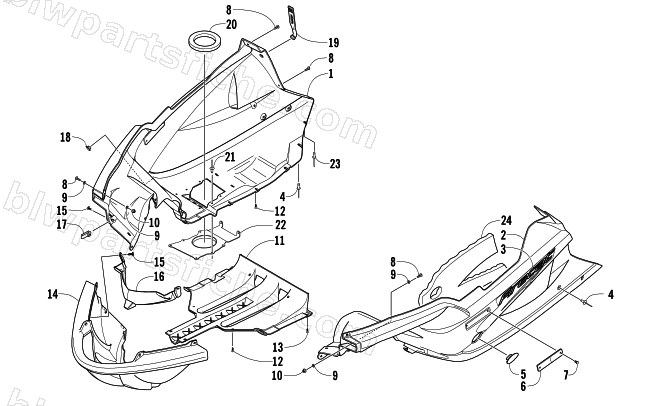

2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1.375 — BELLY PAN ASSEMBLY
2004 FIRECAT 700 EFI SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-224 | BELLY PAN,SNO PRO BLK-RH ROUTED | 1 | $187.95 | |
| 2 | 2706-225 | BELLY PAN,SNO PRO BLK-LH ROUTED | 1 | $209.95 | |
| 3 | 5611-340 | DECAL,BELLY PAN-BLK RH | 1 | $136.95 | |
| 3 | 5611-341 | DECAL,BELLY PAN-BLK LH | 1 | $166.95 | |
| 3 | 5611-316 | DECAL,BELLY PAN-GRN RH | 1 | $141.95 | |
| 3 | 5611-317 | DECAL,BELLY PAN-GRN LH | 1 | $54.95 | |
| 4 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 5 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 6 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 7 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 8 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 3606-085 | BELLY PAN,CENTER-BLK | 1 | $244.95 | |
| 11 | 3606-092 | BELLY PAN,CENTER-RED | 1 | $39.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 14 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 15 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 16 | 2606-911 | SCREEN,FRT BUMPER | 1 | $34.95 | |
| 17 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 18 | 3606-050 | PIN, RESONATOR MTG | 1 | $20.63 | |
| 19 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 20 | 1612-603 | SEAL,EXH OUTLET | 1 | $57.95 | |
| 21 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 22 | 1612-686 | DEFLECTOR,EXH-STAMPED | 1 | $122.95 | |
| 23 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 24 | 0617-443 | FOAM,BELLYPAN-LH | 1 | $43.95 |
