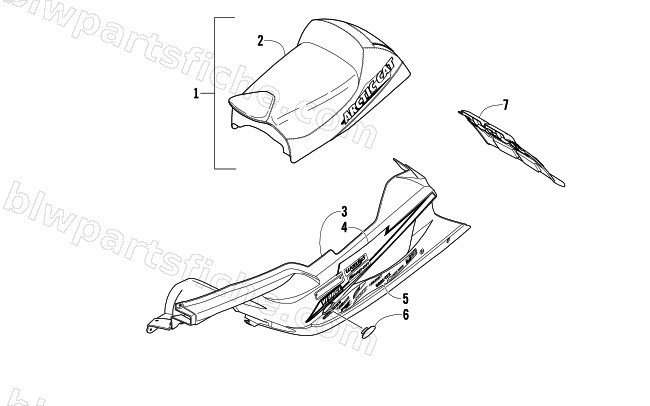

2004 Arctic Cat FIRECAT 700 LIMITED EDITION — BELLY PAN, SEAT, AND SNOWFLAP TEAM ARCTIC GREEN
2004 FIRECAT 700 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2706-470 | COVER,SEAT-GRN W/GRAPHIC | 1 | $365.95 | |
| 3 | 2606-348 | BELLYPAN,RH-INJ MOLD-GREEN | 1 | $201.95 | |
| 3 | 2606-349 | BELLYPAN,LH-INJ MOLD-GREEN | 1 | $201.95 | |
| 4 | 5611-660 | DECAL,BELLY PAN-UPR RH GRN | 1 | $52.95 | |
| 4 | 5611-661 | DECAL,BELLY PAN-UPR LH GRN | 1 | $64.95 | |
| 5 | 5611-662 | DECAL,BELLY PAN-LWR RH GRN | 1 | $69.95 | |
| 5 | 5611-663 | DECAL,BELLY PAN-LWR LH GRN | 1 | $64.95 | |
| 7 | 3606-332 | SNOWFLAP,BLK-W/5611-202 DECAL | 1 | $128.95 |
