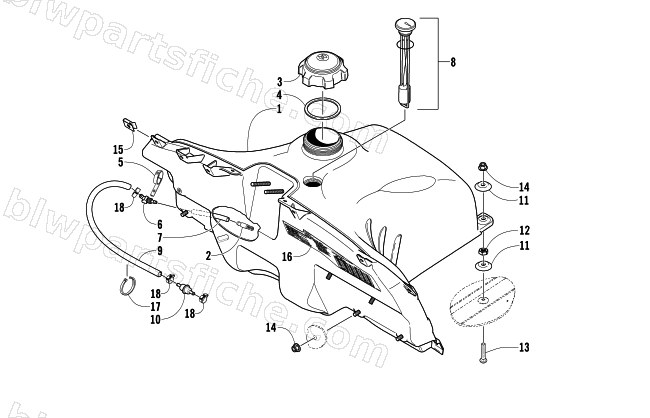

2004 Arctic Cat FIRECAT 700 SNO PRO 1.375 — GAS TANK ASSEMBLY
2004 FIRECAT 700 SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-625 | TANK,GAS-S/P ASSY - CARB | 1 | $342.95 | |
| 2 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 3 | 1670-447 | CAP,VENTED-GAS | 1 | $53.95 | |
| 5 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 6 | 1670-321 | OUTLET, GAS TANK-5/16-45 DEG FITTING | 1 | $5.51 | |
| 7 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 7 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 8 | 1670-523 | GAUGE,FUEL W/ GASKET | 1 | $105.95 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 11 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 12 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 8011-041 | BOLT,CRG 1/4-20X.875 GR1 Z&Y | 1 | $0.45 | |
| 14 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 15 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 16 | 6611-642 | DECAL,JET CHART-04 REVISED F7 CARB | 1 | $36.95 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
