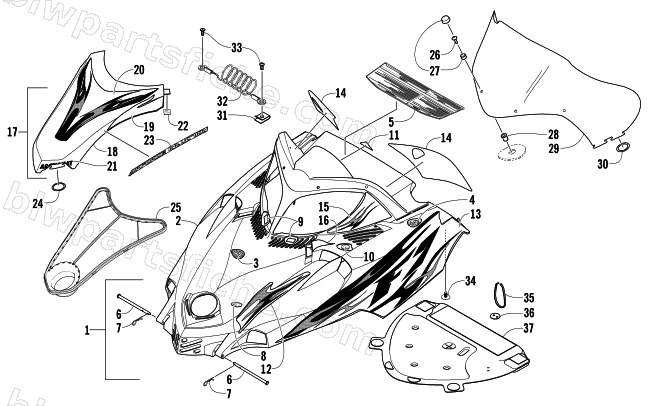

2004 Arctic Cat FIRECAT 700 SNO PRO 1.375 — HOOD AND WINDSHIELD ASSEMBLY
2004 FIRECAT 700 SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-418 | HOOD W/DECALS-BLK (F7 CARB) | 1 | $1,264.95 | |
| 1 | 1718-413 | HOOD W/DECALS-GRN (F7 CARB) | 1 | $1,201.95 | |
| 1 | 1718-423 | HOOD W/DECALS-RED (F7 CARB) | 1 | $1,201.95 | |
| 2 | 1718-237 | HOOD,W/O DECALS(F2 BLK) | 1 | $1,090.95 | |
| 2 | 1718-218 | HOOD,W/O DECALS(FIRECAT GRN) | 1 | $1,090.95 | |
| 2 | 1718-270 | HOOD-W/O DECALS(RED) | 1 | $1,090.95 | |
| 3 | 0717-169 | FOAM, HOOD-CENTER FRT | 1 | $8.95 | |
| 4 | 0717-170 | FOAM, HOOD-REAR RH | 1 | $8.95 | |
| 4 | 0717-171 | FOAM, HOOD-REAR LH | 1 | $8.95 | |
| 5 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 6 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 7 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 8 | 3606-130 | FOIL,HOOD-UPR LEFT | 1 | $16.95 | |
| 12 | 5611-356 | DECAL,HOOD-FWD BLK RH | 1 | $141.95 | |
| 12 | 5611-357 | DECAL,HOOD-FWD BLK LH | 1 | $102.95 | |
| 12 | 5611-332 | DECAL,HOOD-FWD GRN RH | 1 | $88.95 | |
| 12 | 5611-333 | DECAL,HOOD-FWD GRN LH | 1 | $31.95 | |
| 12 | 5611-378 | DECAL,HOOD-FWD RED RH | 1 | $185.95 | |
| 12 | 5611-379 | DECAL,HOOD-FWD RED LH | 1 | $110.95 | |
| 13 | 5611-350 | DECAL,HOOD-LWR BLK "F7" RH | 1 | $185.95 | |
| 13 | 5611-351 | DECAL,HOOD-LWR BLK "F7" LH | 1 | $167.95 | |
| 13 | 5611-326 | DECAL,HOOD-LWR GRN "F7" RH | 1 | $141.95 | |
| 13 | 5611-327 | DECAL,HOOD-LWR GRN "F7" LH | 1 | $141.95 | |
| 13 | 5611-372 | DECAL,HOOD-LWR RED "F7" RH | 1 | $191.95 | |
| 13 | 5611-373 | DECAL,HOOD-LWR RED "F7" LH | 1 | $191.95 | |
| 14 | 5611-358 | DECAL,HOOD-CONSOLE BLK RH | 1 | $143.95 | |
| 14 | 5611-359 | DECAL,HOOD-CONSOLE BLK LH | 1 | $17.95 | |
| 14 | 5611-336 | DECAL,HOOD-CONSOLE GRN RH | 1 | $90.95 | |
| 14 | 5611-337 | DECAL,HOOD-CONSOLE GRN LH | 1 | $88.95 | |
| 14 | 5611-380 | DECAL,HOOD-CONSOLE RED RH | 1 | $20.63 | |
| 14 | 5611-381 | DECAL,HOOD-CONSOLE RED LH | 1 | $20.63 | |
| 15 | 5611-354 | DECAL,HOOD LIGHT-BLK RH | 1 | $21.95 | |
| 15 | 5611-355 | DECAL,HOOD LIGHT-BLK LH | 1 | $21.95 | |
| 15 | 5611-330 | DECAL,HOOD LIGHT-GRN RH | 1 | $191.95 | |
| 15 | 5611-331 | DECAL,HOOD LIGHT-GRN LH | 1 | $112.95 | |
| 15 | 5611-376 | DECAL,HOOD LIGHT-RED RH | 1 | $20.95 | |
| 15 | 5611-377 | DECAL,HOOD LIGHT-RED LH | 1 | $20.95 | |
| 16 | 5611-334 | DECAL,HOOD-VENT BLK RH | 1 | $39.95 | |
| 16 | 5611-335 | DECAL,HOOD-VENT BLK LH | 1 | $39.95 | |
| 17 | 1718-426 | COVER,HOOD-BLK W/BLK DECALS | 1 | $568.95 | |
| 17 | 1718-425 | COVER,HOOD-BLK W/GRN DECALS | 1 | $679.95 | |
| 18 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 19 | 5611-344 | DECAL,COVER-LWR BLK RH | 1 | $21.95 | |
| 19 | 5611-345 | DECAL,COVER-LWR BLK LH | 1 | $21.95 | |
| 19 | 5611-320 | DECAL,COVER-LWR GRN RH | 1 | $136.95 | |
| 19 | 5611-321 | DECAL,COVER-LWR GRN LH | 1 | $93.95 | |
| 19 | 5611-366 | DECAL,COVER-LWR RED RH | 1 | $22.01 | |
| 19 | 5611-367 | DECAL,COVER-LWR RED LH | 1 | $22.01 | |
| 20 | 5611-342 | DECAL,COVER-CREST BLK | 1 | $94.95 | |
| 20 | 5611-318 | DECAL,COVER-CREST GRN | 1 | $39.95 | |
| 20 | 5611-364 | DECAL,COVER-CREST RED | 1 | $191.95 | |
| 21 | 5611-382 | DECAL,COVER-"ARCTIC CAT" W/FLAMES | 1 | $136.95 | |
| 22 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 23 | 5611-319 | DECAL,COVER-FWD YEL "AIRFORCE INDUCTION" | 1 | $89.95 | |
| 24 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 25 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 26 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 27 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 28 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 29 | 2606-834 | WINDSHIELD,LOW-CHROME | 1 | $298.95 | |
| 29 | 3606-062 | WINDSHIELD,LOW-BLK W/RED FADE | 1 | $216.95 | |
| 30 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 31 | 1623-052 | NUT,U | 1 | $0.95 | |
| 32 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 33 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 34 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 35 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 36 | 1623-208 | WASHER,RETAINING | 1 | $1.95 |
