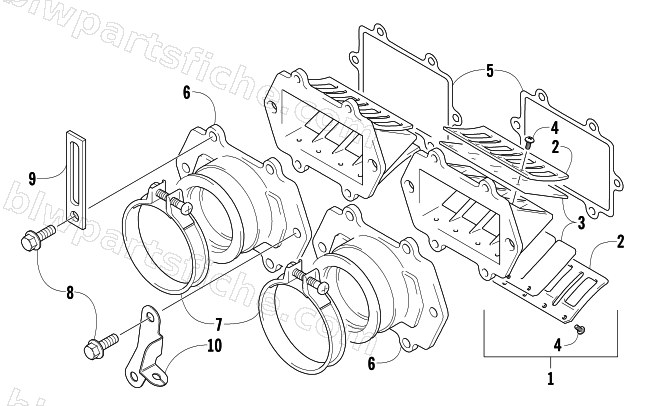

REED VALVE ASSEMBLY
2004 FIRECAT 700 SNO PRO 1.375
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-510 | VALVE ASSY,REED | 1 | $279.95 | |
| 2 | 3006-553 | STOPPER,REED VALVE | 1 | $31.95 | |
| 3 | 3005-878 | VALVE, REED | 1 | $53.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3006-713 | PIPE COMP,INTAKE | 1 | $168.95 | |
| 7 | 3004-463 | CLAMP,M58 | 1 | $34.95 | |
| 8 | 3007-380 | BOLT | 1 | $3.16 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 3006-715 | BRACKET,OIL PUMP | 1 | $16.49 |
