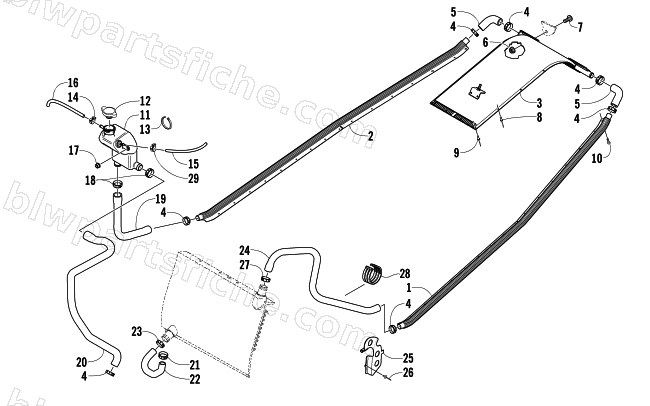

COOLING ASSEMBLY
2004 FIRECAT 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-527 | HEAT EXCH,RUNNING BOARD-FORMED LH | 1 | $117.95 | |
| 2 | 2706-526 | HEAT EXCH,RUNNING BOARD-FORMED RH | 1 | $115.95 | |
| 3 | 3706-001 | EXCHANGER,HEAT-REAR WELD'T | 1 | $484.95 | |
| 4 | 1623-188 | CLAMP,HOSE-29/8 SS | 1 | $4.95 | |
| 5 | 0610-567 | HOSE,COOLANT-REAR EXCH | 1 | $20.63 | |
| 6 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 7 | 8017-397 | SCREW,MACH-TSTRH 10-24X.5 GR2 Z&Y | 1 | $0.35 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 10 | 1623-061 | SCREW,PLASTITE-TSFH 1/4-10X.750 Z&Y | 1 | $0.95 | |
| 11 | 3606-349 | TANK,COOLANT-04 | 1 | $112.95 | |
| 12 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 15 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 16 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 16 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 17 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 18 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 19 | 0610-571 | HOSE,COOLANT-RH EXCH/TANK | 1 | $37.95 | |
| 20 | 0610-573 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $79.95 | |
| 21 | 1623-048 | CLAMP,HOSE-23/8 SS | 1 | $4.40 | |
| 22 | 0610-648 | HOSE,COOLANT-ENG/FRT EXCH | 1 | $27.95 | |
| 23 | 1623-186 | CLAMP,HOSE(NORMA 29) COOLING | 1 | $5.95 | |
| 24 | 0610-570 | HOSE,COOLANT-FRT EXCH/LH EXCH | 1 | $57.95 | |
| 25 | 3606-354 | PROTECTOR, HOSE-FRT EXCH | 1 | $11.95 | |
| 26 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 27 | 1623-187 | CLAMP,HOSE-34/9 SS | 1 | $5.09 | |
| 28 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 29 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
