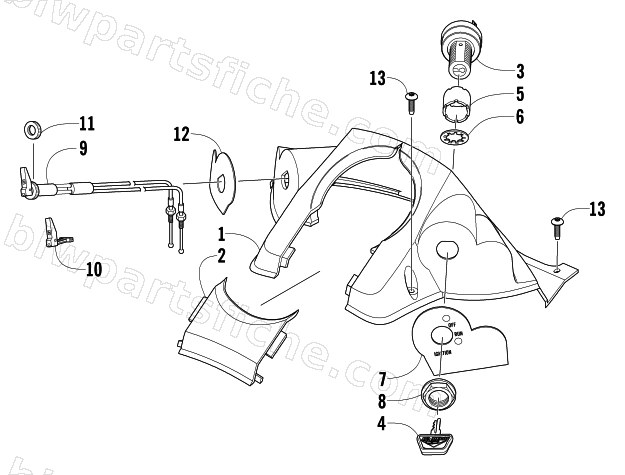

CONSOLE AND SWITCH ASSEMBLY
2004 KING CAT 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-425 | CONSOLE,MULTI KEY-DK PEWTER-ROUTED | 1 | $45.95 | |
| 2 | 3606-209 | DOOR,CONSOLE-DK PEWTER-MOLDED | 1 | $38.95 | |
| 3 | 0609-286 | SWITCH, IGNITION NORM OPEN | 1 | $66.95 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 7 | 2611-678 | DECAL,CONSOLE SWITCH-RH | 1 | $42.95 | |
| 8 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 9 | 0687-136 | CABLE,CHOKE-LONG PULL TWIN | 1 | $109.95 | |
| 10 | 1639-835 | KIT, CHOKE LEVER/LONG PULL | 1 | $20.63 | |
| 11 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 | |
| 12 | 2611-867 | DECAL,CONSOLE-LH (CHOKE) | 1 | $42.95 | |
| 13 | 1623-175 | SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z | 1 | $13.73 |
