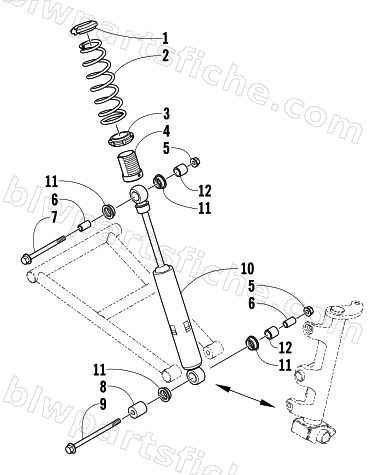

2004 Arctic Cat MOUNTAIN CAT 570 — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2004 MOUNTAIN CAT 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 1703-257 | SPRING,COMP-SHOCK-110 LBS-9.5"-PTD GRN | 1 | $133.95 | |
| 3 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 4 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 5 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 6 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 7 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 8 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 9 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 10 | 1603-910 | SHOCK,SKI-GABRIEL-40" | 1 | $193.95 | |
| 11 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 12 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 |
