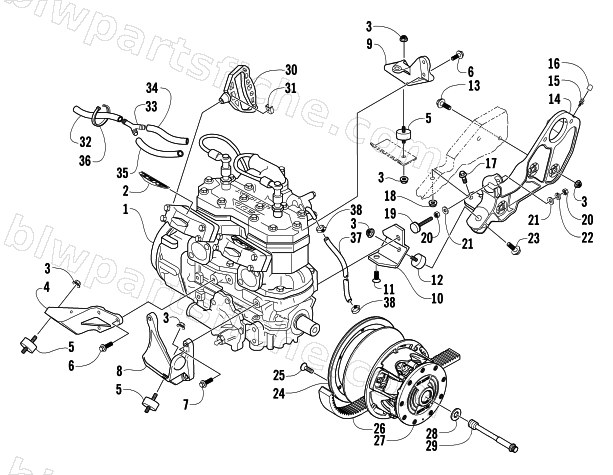

ENGINE AND RELATED PARTS
2004 MOUNTAIN CAT 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3611-967 | DECAL, APV | 1 | $19.95 | |
| 3 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 0708-102 | BRKT,ENG MTG-RH FRONT-MACH(99Z6B) | 1 | $82.95 | |
| 5 | 0608-118 | MOUNT,ENGINE-DOUBLE MALE | 1 | $26.95 | |
| 6 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 7 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 8 | 0708-103 | BRKT,ENG MTG-LH FRONT-MACH(99Z6B) | 1 | $112.95 | |
| 9 | 0708-104 | BRKT,ENG MTG-RH REAR-MACH(99Z6B) | 1 | $40.95 | |
| 10 | 0708-120 | BRKT, ENG,MTG-LH REAR MACH | 1 | $197.95 | |
| 11 | 0623-095 | SCREW,MACH-HSFH 1/2-13X1.00 Z&Y | 1 | $6.47 | |
| 12 | 0608-217 | MOUNT,ENG-50 DURO,.75 STUD,FULL WASHER | 1 | $26.95 | |
| 13 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 14 | 0708-404 | BRKT,ENGINE MTG/BEARING SUPPORT-ASSY | 1 | $119.95 | |
| 15 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 16 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 17 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 0608-299 | BUMPER,TORQUE-ENGINE (2000) | 1 | $15.95 | |
| 20 | 8042-516 | NUT,3/8-24 HEX-REG-G5 Z&Y | 1 | $0.40 | |
| 21 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 22 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 23 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 24 | 0645-410 | RING,DAMPER - CLUTCH | 1 | $82.95 | |
| 25 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 26 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 27 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 28 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 29 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 30 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 31 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 32 | 0610-535 | HOSE,DRAIN-VEV (EXIT) | 1 | $20.63 | |
| 33 | 0670-875 | FITTING,'Y' (1/2 X 1/2 X 1/2) | 1 | $19.25 | |
| 34 | 0610-364 | HOSE,DRAIN-VEV (PTO) | 1 | $19.25 | |
| 35 | 0610-363 | HOSE,DRAIN-VEV (MAG) | 1 | $15.95 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 37 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 38 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
