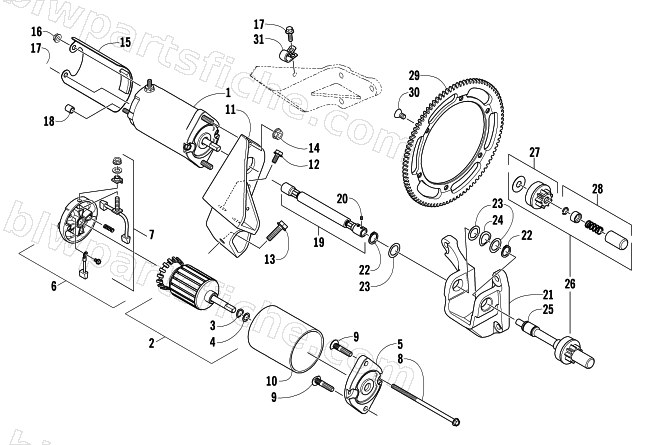

2004 Arctic Cat MOUNTAIN CAT 600 EFI — FLEX-DRIVE STARTER MOTOR ASSEMBLY (Optional)
2004 MOUNTAIN CAT 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-228 | KIT, ELEC START- ZR 600 "B" | 1 | $726.95 | |
| 1 | 0745-356 | STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS | 1 | $434.95 | |
| 2 | 0645-296 | ARMATURE ASS'Y, "B PAC" FLEX ES | 1 | $378.95 | |
| 3 | 0645-131 | WASHER,WAVE-ELECT START MOTOR | 1 | $3.95 | |
| 4 | 0645-293 | WASHER, THRUST-3/8" ID ES | 1 | $4.26 | |
| 5 | 0645-297 | CAP,DRIVE-"B PAC" FLEX ES W/ZO7 | 1 | $113.95 | |
| 6 | 0645-313 | CAP,COMM-LONG TB FLEX B W/BRUSHES | 1 | $132.95 | |
| 7 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 8 | 0645-128 | BOLT,THRU 1/4-20X5.75 | 1 | $63.95 | |
| 9 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 11 | 0708-097 | BRACKET, MTG-FLEX STARTER (MACH) | 1 | $101.95 | |
| 12 | 0623-890 | SCREW, SELF,TAP-HWH 5/16X3/4" TT Z&Y | 1 | $2.75 | |
| 13 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 14 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 15 | 0745-181 | SHIELD, HEAT ES ASSY | 1 | $17.95 | |
| 16 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 17 | 0623-892 | SCREW,SELF TAP-HWH 1/4-20X1/2 | 1 | $0.95 | |
| 19 | 0745-169 | SHAFT, FLEX-ES BONDED-13.25 | 1 | $244.95 | |
| 20 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 21 | 0745-179 | ENG MTG-LH FRNT-FLEX ES W/BUSHING | 1 | $88.95 | |
| 22 | 0645-256 | SNAP RING,EXTL-17MM DIA | 1 | $3.71 | |
| 23 | 0645-254 | WASHER, THRUST-.68IDX1.00OD (WA3122) | 1 | $19.95 | |
| 24 | 0645-255 | WASHER, WAVE-11/16" | 1 | $3.85 | |
| 25 | 0745-253 | DRIVE/SHAFT, PINION-FLEX .63 ASSY | 1 | $359.95 | |
| 26 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 27 | 0637-265 | UPDATE KIT,STARTER PINION DRIVE(4-1-2) | 1 | $92.95 | |
| 28 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 29 | 0645-329 | RING GEAR,ELECTRIC START-LW | 1 | $287.95 | |
| 30 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 31 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 |
