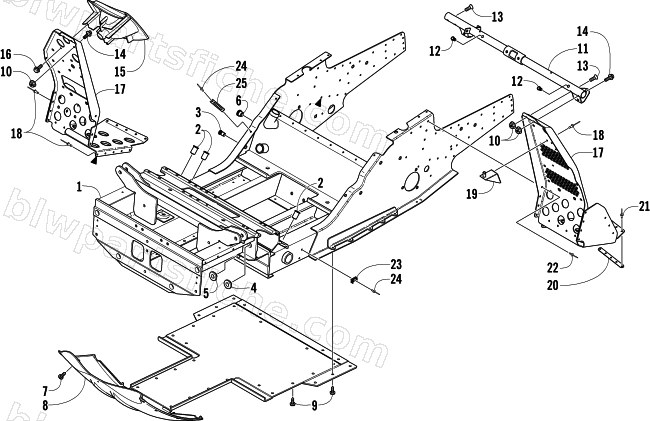

2004 Arctic Cat MOUNTAIN CAT 600 EFI — FRONT FRAME AND FOOTREST ASSEMBLY
2004 MOUNTAIN CAT 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-811 | CHASSIS-S/P ASSY-04 MTN CAT 600 | 1 | $1,312.95 | |
| 2 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 0705-866 | SUPPORT,STEERING-S/P ASSY | 1 | $89.95 | |
| 12 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 13 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 14 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 15 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 16 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 17 | 2606-800 | FOOTREST W/CUT OUT-RH | 1 | $92.95 | |
| 17 | 2606-733 | FOOTREST,LH-W/HOLES | 1 | $92.95 | |
| 18 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 19 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 20 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 21 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 22 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 23 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 24 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
