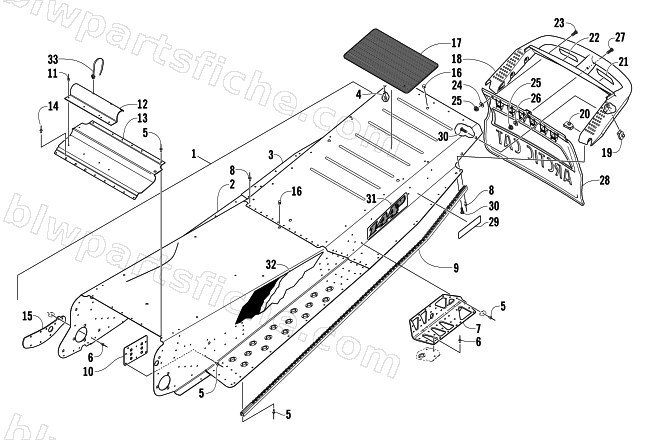

2004 Arctic Cat MOUNTAIN CAT 600 EFI — TUNNEL AND REAR BUMPER
2004 MOUNTAIN CAT 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-553 | TUNNEL-S/P ASSY-MTN CAT 144 | 1 | $980.95 | |
| 2 | 3606-307 | BODY,FRONT-L/C-FORMED | 1 | $320.95 | |
| 3 | 3606-309 | BODY, REAR-144"-FORMED | 1 | $314.95 | |
| 4 | 1623-078 | STUD,SELF-CLINCH 1/4-20X 1/2 HIGH TORQ | 1 | $1.95 | |
| 5 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 5 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 6 | 8060-448 | RIVET,BLIND-DH AS56 PL | 1 | $0.40 | |
| 7 | 1706-918 | BRACKET,MTG-REAR SUSPENSION-RH-MACH | 1 | $99.95 | |
| 7 | 1706-917 | BRACKET,MTG-REAR SUSPENSION-LH-MACH | 1 | $99.95 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 2606-510 | ROLL, TUNNEL-RH-144"-FORMED | 1 | $72.95 | |
| 9 | 2606-511 | ROLL, TUNNEL-LH-144"-FORMED | 1 | $74.95 | |
| 10 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 11 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 12 | 0607-751 | BRKT,PROTECTOR-MAIN HARNESS | 1 | $17.95 | |
| 13 | 2606-849 | COVER,DRIVEN SHAFT-FORMED | 1 | $97.95 | |
| 15 | 2606-905 | PLATE,BACKING-DROPCASE GUARD | 1 | $27.95 | |
| 16 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 17 | 2606-134 | PAD, RUBBER | 1 | $36.95 | |
| 18 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 19 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 20 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 21 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 22 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 23 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 25 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 26 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 27 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 28 | 2606-460 | SNOWFLAP, LONG | 1 | $140.95 | |
| 28 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 29 | 0411-647 | DECAL,REFLECTOR-RED | 1 | $4.95 | |
| 30 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 31 | 5611-458 | DECAL,TUNNEL-144" (GOLD) | 1 | $40.95 | |
| 32 | 5611-462 | DECAL,TUNNEL-FORWARD-R/H (GRN) | 1 | $40.95 | |
| 32 | 5611-463 | DECAL,TUNNEL-FORWARD-L/H (GRN) | 1 | $40.95 | |
| 32 | 5611-464 | DECAL,TUNNEL-FORWARD-R/H (RED) | 1 | $41.95 | |
| 32 | 5611-465 | DECAL,TUNNEL-FORWARD-L/H (RED) | 1 | $43.95 | |
| 33 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
