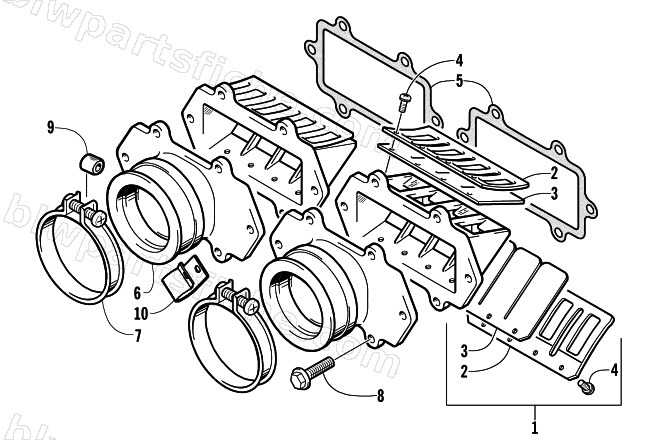

REED VALVE ASSEMBLY
2004 MOUNTAIN CAT 800 EFI 151
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-876 | VALVE ASSY, REED | 1 | $249.95 | |
| 2 | 3005-877 | STOPPER, REED VALVE | 1 | $30.95 | |
| 3 | 3005-878 | VALVE, REED | 1 | $53.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3006-527 | PIPE,INTAKE | 1 | $133.95 | |
| 7 | 3004-463 | CLAMP,M58 | 1 | $34.95 | |
| 8 | 3007-380 | BOLT | 1 | $3.16 | |
| 9 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 10 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 |
