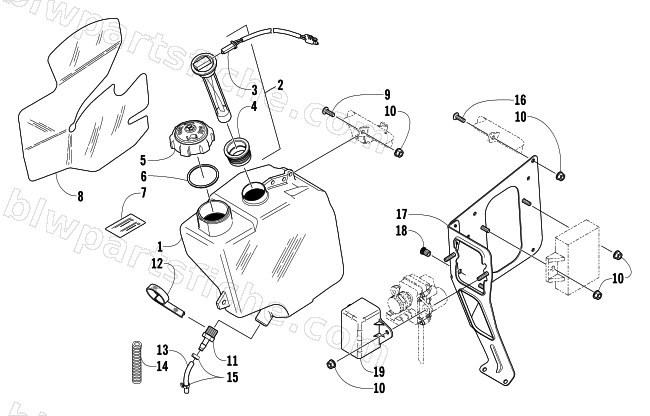

2004 Arctic Cat MOUNTAIN CAT 900 159 — OIL TANK ASSEMBLY
2004 MOUNTAIN CAT 900 159
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-026 | TANK,OIL(2000 ZR) | 1 | $122.95 | |
| 2 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 3 | 0609-518 | SWITCH, OIL-W/HARNESS- ASSY | 1 | $102.95 | |
| 4 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 5 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 4611-532 | DECAL,OIL TANK-VEV SYNTHETIC | 1 | $2.75 | |
| 8 | 1670-234 | FOIL, PROTECTIVE-OIL TANK | 1 | $71.95 | |
| 9 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 0670-733 | FITTING,STRAIGHT-5/16 X 3/8 NPT | 1 | $5.65 | |
| 12 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 13 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 13 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 14 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 15 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 16 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 17 | 0770-603 | PLATE-MTG ELECTRICAL W/STUDS(CARBS) | 1 | $74.95 | |
| 18 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 |
