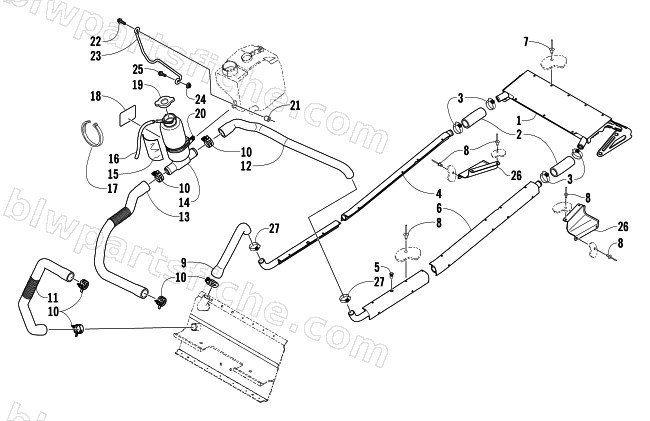

COOLING ASSEMBLY
2004 MOUNTAIN CAT 900 EFI 151
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-368 | HEAT EXCHANGER,REAR-WELDT | 1 | $434.95 | |
| 2 | 0610-506 | HOSE,COOLANT-REAR-CORNER | 1 | $10.95 | |
| 3 | 1623-195 | CLAMP,H0SE-CRIMP-27.1 | 1 | $4.95 | |
| 4 | 2706-100 | HEAT EXCH,151"-RH-ASSY | 1 | $223.95 | |
| 5 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 6 | 2706-101 | HEAT EXCH,151"-LH-ASSY | 1 | $228.95 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 0610-504 | HOSE,COOLANT-FRT EXCH TO RH EXCH | 1 | $34.95 | |
| 11 | 0610-475 | HOSE, COOLANT-THERMO/FRT EXCH-W/PROTECTO | 1 | $43.95 | |
| 12 | 0610-505 | HOSE,COOLANT-LH EXCH TO TANK | 1 | $47.95 | |
| 13 | 0610-474 | HOSE,COOLANT-TANK/PUMP-W/PROTECTOR | 1 | $73.95 | |
| 14 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 15 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 16 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 16 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 19 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 20 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 21 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 22 | 8020-046 | SCREW,CAP-HFH 1/4-20 X 1.750 Z&Y | 1 | $1.39 | |
| 23 | 0708-468 | KIT,ROPE GUIDE(1M) | 1 | $55.95 | |
| 24 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 25 | 8020-044 | SCREW,CAP-HFH 1/4-20 X 1.250 Z&Y | 1 | $3.85 | |
| 26 | 3606-380 | PROTECTOR,HOSE-REAR-R/H | 1 | $19.25 | |
| 26 | 3606-381 | PROTECTOR,HOSE-REAR-L/H | 1 | $19.25 | |
| 27 | 1623-203 | CLAMP,H0SE-CRIMP-28.6 | 1 | $4.54 |
