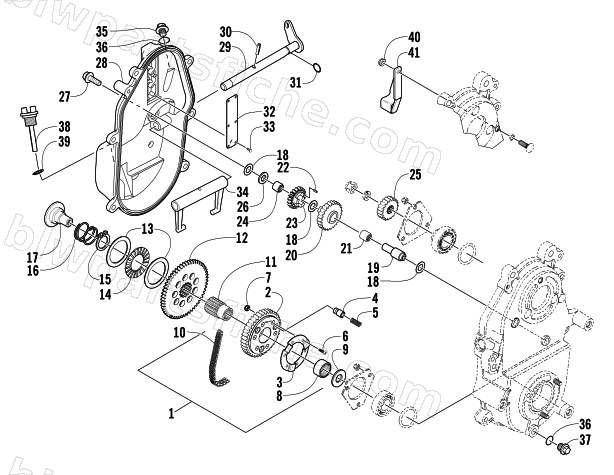

DRIVE/REVERSE DROPCASE ASSEMBLY (Optional)
2004 MOUNTAIN CAT 900 EFI 151
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3639-527 | KIT, REVERSE 19/43 15W-STEP | 1 | $649.95 | |
| 1 | 0702-494 | SPROCKET,ASSY-43T X 15 WIDE | 1 | $377.95 | |
| 3 | 0602-144 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 0602-133 | PIN,SLIP-.993 LG | 1 | $17.87 | |
| 5 | 0602-138 | SPRING,COMPRESSION-REVERSE | 1 | $3.02 | |
| 6 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 7 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 8 | 0602-016 | BEARING,J-2012 DC-1.250 | 1 | $23.39 | |
| 9 | 0602-012 | SPACER, EXT SHAFT-1.0 X 2.0 X .155TH | 1 | $19.25 | |
| 10 | 0602-972 | CHAIN, 72P (15 WIDE) | 1 | $142.95 | |
| 10 | 0602-968 | CHAIN,70P (15 WIDE) | 1 | $142.95 | |
| 11 | 1602-048 | SHAFT, EXTENSION | 1 | $129.95 | |
| 12 | 0702-048 | GEAR, 55T REVERSE-ASSY | 1 | $429.95 | |
| 13 | 0602-023 | WASHER,THRUST-2.25 | 1 | $15.11 | |
| 14 | 0602-022 | BEARING,THRUST | 1 | $23.39 | |
| 15 | 0602-024 | RING,RETAINING | 1 | $3.99 | |
| 16 | 0602-028 | SPRING, RETURN | 1 | $22.01 | |
| 17 | 0638-881 | KIT, REVERSE DRIVE ADAPTER | 1 | $51.95 | |
| 18 | 0602-215 | WASHER, THRUST-.625 ID X.030 X 1.105OD | 1 | $3.85 | |
| 19 | 0602-872 | SHAFT, REVERSE IDLER | 1 | $113.95 | |
| 20 | 0702-371 | SPROCKET, 20T IDLER ASSY | 1 | $283.95 | |
| 20 | 0702-322 | SPROCKET, 24T - IDLER ASSY | 1 | $205.95 | |
| 21 | 0602-205 | BEARING, CAGED-.875 X 1.00 | 1 | $38.95 | |
| 22 | 0602-366 | PIN, ALIGNING-IDLERS | 1 | $1.37 | |
| 23 | 0702-365 | GEAR, 19T IDLER - ASSY | 1 | $178.95 | |
| 24 | 1602-045 | BEARING,DC-.625 X .625 | 1 | $19.25 | |
| 25 | 1602-383 | SPROCKET,PM-19T (15 WIDE) | 1 | $82.95 | |
| 26 | 1602-044 | WASHER, THRUST-.625 ID X .126 X 1.125 OD | 1 | $13.73 | |
| 27 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 28 | 0702-493 | COVER, DROPCASE-REV-ASSY | 1 | $268.95 | |
| 29 | 0702-492 | SHAFT,SHIFT FORK-PTD BLK | 1 | $43.95 | |
| 30 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 31 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 32 | 1602-151 | COVER, OIL VENT - REVERSE | 1 | $38.95 | |
| 33 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 34 | 0602-085 | FORK,SHIFT-MACHINED | 1 | $96.95 | |
| 35 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 36 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 37 | 0602-479 | PLUG, DRAIN-MAGNETIC | 1 | $22.01 | |
| 38 | 0602-483 | STICK, CHECK-OIL LEVEL-REV. | 1 | $41.95 | |
| 39 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 40 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 41 | 2602-078 | BRKT, CHAIN BACKING-20 T | 1 | $21.95 | |
| 41 | 0702-553 | BRACKET, CHAIN BACKING-WELDT(0602-466) | 1 | $56.95 |
