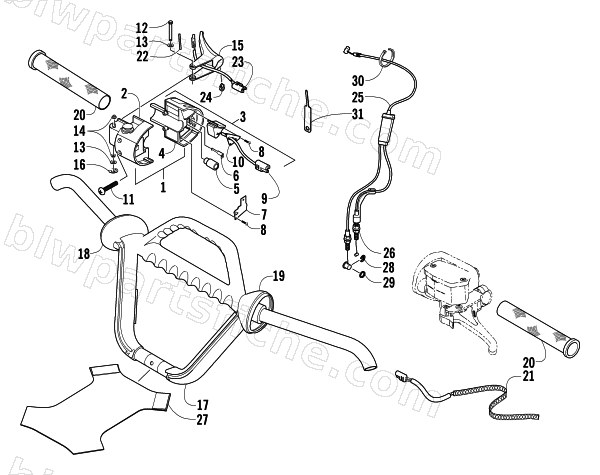

HANDLEBAR AND CONTROLS
2004 MOUNTAIN CAT 900 EFI 151
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-520 | CONTROL,TH-SPLIT 3W W/ HI/LO | 1 | $162.95 | |
| 2 | 0609-521 | CONTROL,TH-STOP SWITCH HALF | 1 | $94.95 | |
| 3 | 0609-522 | CONTROL,TH-HALF ASSY HI/LO | 1 | $124.95 | |
| 4 | 0609-495 | CONTROL,TH-WARMER SW HALF HI/LO | 1 | $40.95 | |
| 5 | 0609-497 | PLUG,RUBBER-IDLE SWITCH | 1 | $14.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 7 | 0609-496 | PLATE,RETAINER-IDLE SWITCH | 1 | $14.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 9 | 0609-523 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $73.95 | |
| 11 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 15 | 0609-368 | LEVER, TH-35MM W/O IDLE SWITCH | 1 | $31.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 0705-387 | HANDLEBAR, MC STYLE-MOLDED ASSY | 1 | $127.95 | |
| 18 | 0605-556 | END CAP,THROTTLE-RH | 1 | $18.95 | |
| 19 | 0605-557 | END CAP,BRAKE-LH | 1 | $6.95 | |
| 20 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 21 | 0609-724 | ELEMENT,HW-HI/LO STRIP W/#32-R/H | 1 | $82.95 | |
| 22 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 23 | 0609-619 | ELEMENT, THUMBWARMER-HI/LOW | 1 | $62.95 | |
| 24 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 25 | 0687-148 | CABLE, THROTTLE - DUAL EFI | 1 | $147.95 | |
| 27 | 0705-905 | WRAP,STEERING ADJ-H SHAPE | 1 | $24.77 | |
| 28 | 0124-057 | E-RING | 1 | $1.64 | |
| 29 | 0124-056 | WASHER | 1 | $13.73 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 |
