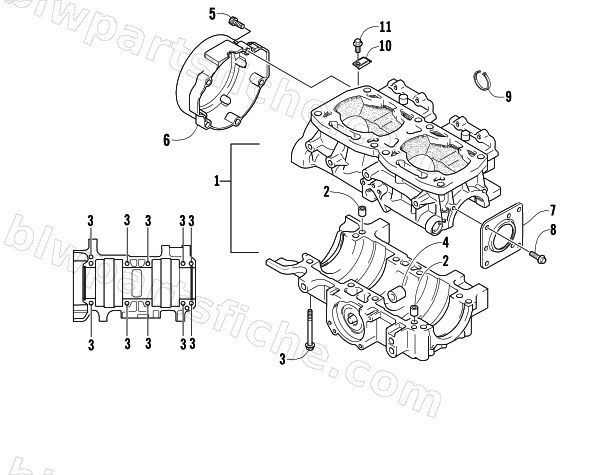

CRANKCASE ASSEMBLY
2004 MOUNTAIN CAT 900 EFI 159
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-460 | CRANKCASE ASSY, 03 800 L/C EFI | 1 | $1,578.95 | |
| 1 | 3006-418 | CRANKCASE-ASSY | 1 | $1,387.95 | |
| 2 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 3 | 3005-514 | BOLT,(10X100) | 1 | $7.95 | |
| 3 | 3005-846 | BOLT, 10X115 | 1 | $12.35 | |
| 4 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 4 | 3007-381 | BOLT | 1 | $3.16 | |
| 5 | 3006-077 | BOLT,'02 800 EFI | 1 | $4.95 | |
| 6 | 3006-052 | CASE, MAGNETO 02 800 L/C EFI | 1 | $606.95 | |
| 7 | 3008-304 | PLATE,OIL SEAL | 1 | $33.95 | |
| 8 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0608-375 | BRKT, GROUND WIRE-ENGINE 800 EFI | 1 | $10.95 | |
| 10 | 0608-117 | BRKT,GROUND WIRE-ENGINE | 1 | $13.95 | |
| 11 | 0145-105 | SCREW M6X14MM | 1 | $0.55 |
