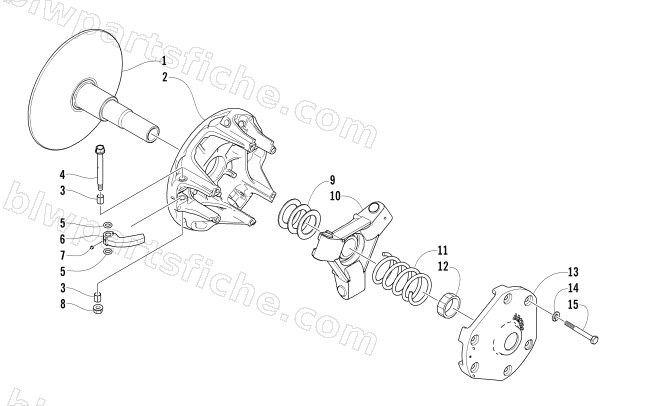

DRIVE CLUTCH
2004 MOUNTAIN CAT 900 EFI 159
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-836 | CLUTCH,DRIVE-UNCAL-8.25 33MM/D | 1 | $668.95 | |
| 0 | 4639-673 | KIT,CAM ARM REPAIR'04(WIDE) | 1 | $45.95 | |
| 0 | 1639-030 | KIT, CAM ARM REPAIR- W/O ARMS | 1 | $81.95 | |
| 1 | 0646-359 | SHEAVE, STATIONARY-33MM | 1 | $231.95 | |
| 3 | 0646-372 | BEARING,CAM ARM PIN (05DP08) | 1 | $1.37 | |
| 3 | 0746-086 | COVER ASSY - DRIVE CLUTCH | 1 | $116.95 | |
| 4 | 0646-344 | PIN, CAM ARM | 1 | $19.25 | |
| 5 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0746-689 | ARM, CAM-WIDE 69 GRAM-W/SET SCREW | 1 | $10.97 | |
| 6 | 0746-715 | ARM, CAM W/SET SCREW(77GR) | 1 | $10.97 | |
| 6 | 0746-710 | ARM, CAM-72 GR-W/SET SCREW | 1 | $9.59 | |
| 6 | 0746-699 | ARM, CAM W/SET SCREW | 1 | $10.97 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 7 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 7 | 0746-650 | ARM,CAM W/BRG-67 GRAM | 1 | $16.95 | |
| 7 | 0746-640 | ARM,CAM-W/BRG-71.5 GR | 1 | $23.39 | |
| 7 | 0746-634 | ARM,CAM-W/ BRG-70.5 GRAM | 1 | $23.39 | |
| 7 | 0746-614 | ARM,CAM-W/ BRG-64.0 GRAMS | 1 | $26.95 | |
| 8 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0746-115 | SPIDER-ASSY-MACH | 1 | $354.95 | |
| 11 | 0646-147 | SPRING,CLUTCH-YELLOW/GREEN | 1 | $54.95 | |
| 11 | 0646-155 | SPRING,CLUTCH-PURP | 1 | $88.95 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 12 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 13 | 0746-113 | COVER, DRIVE CLUTCH-ASSY (6 POST) | 1 | $99.95 | |
| 13 | 0623-596 | SCREW,MACH-TSH 1/4X2.50 Z&Y | 1 | $4.95 | |
| 14 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 15 | 1623-442 | SCREW, CAP-HH 1/4-20X2.50 GD 8 | 1 | $1.23 |
