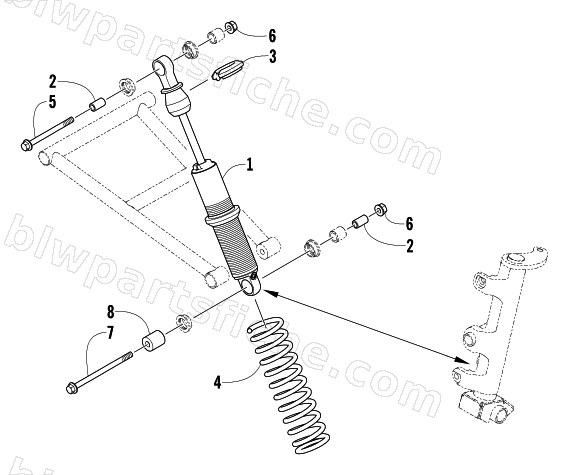

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2004 MOUNTAIN CAT 900 EFI 159
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 3 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 1703-216 | SPRING,SHOCK-SKI (110#X10")-PTD GRN | 1 | $86.95 | |
| 4 | 1703-264 | SPRING,SHOCK-SKI (110#X10")-PTD RED | 1 | $89.95 | |
| 5 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 6 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 7 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 8 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 |
