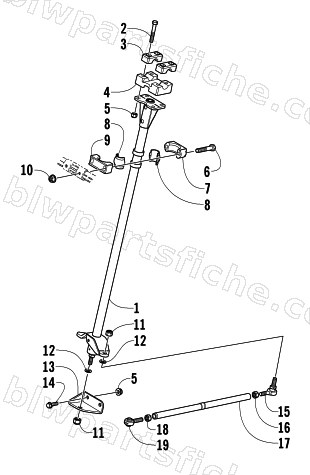

STEERING POST ASSEMBLY
2004 PANTERA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-376 | POST,STEERING-PTD BLK | 1 | $168.95 | |
| 2 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 3 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 4 | 0605-507 | LOCK,ADJUSTING-STEERING | 1 | $60.95 | |
| 5 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 6 | 0623-814 | SCREW,CAP-1/2HH 1/4 - 20 X 3.00 GR 5 Z&Y | 1 | $1.09 | |
| 7 | 0605-406 | CAP,BEARING-HOUSING - STEERING POST(99PR | 1 | $33.95 | |
| 8 | 0405-020 | BEARING,STEERING POST | 1 | $2.33 | |
| 9 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 12 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 13 | 0705-407 | PLATE STEERING POST MTG-PTD BLK | 1 | $71.95 | |
| 14 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 15 | 0605-423 | ROD END,LH-3/8-24 W/STUD | 1 | $45.95 | |
| 16 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 17 | 0605-626 | TUBE,TIE ROD- CENTER-14.30" W/FLATS | 1 | $26.95 | |
| 18 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 19 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 |
