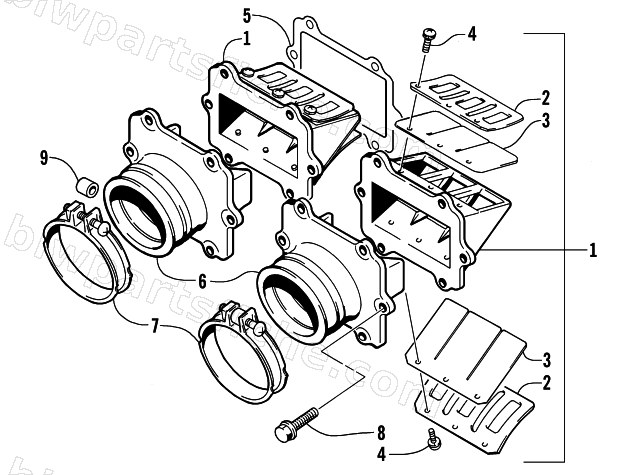

REED VALVE ASSEMBLY
2004 PANTERA 600 EFI
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3005-124 |
VALVE ASSY, REED |
1 |
$259.95 |
|
| 3 |
3004-177 |
VALVE, REED |
1 |
$27.95 |
|
| 4 |
3004-506 |
SCREW, 3X8 |
1 |
$2.47 |
|
| 5 |
3005-432 |
GASKET, REED VALVE |
1 |
$17.87 |
|
| 6 |
3005-264 |
PIPE,INTAKE |
1 |
$121.95 |
|
| 7 |
3004-463 |
CLAMP,M58 |
1 |
$34.95 |
|
| 8 |
3007-380 |
BOLT |
1 |
$3.16 |
|
| 9 |
0670-210 |
SPACER, CLAMP- 9mm |
1 |
$4.40 |
|
