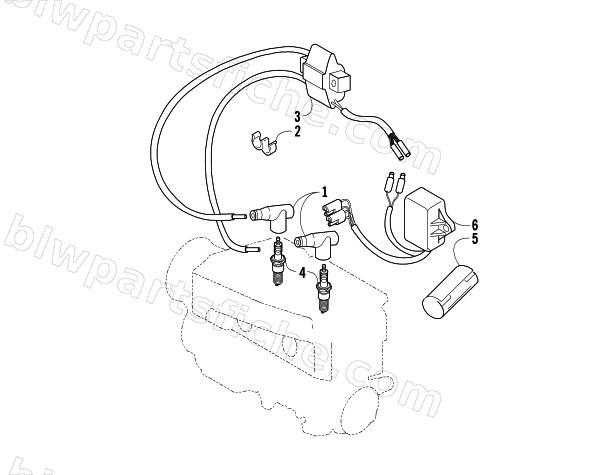

2004 Arctic Cat PANTHER 370 — ELECTRICAL
2004 PANTHER 370
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 2 | 3005-387 | CLIP | 1 | $4.40 | |
| 3 | 3005-170 | COIL ASSY, IGNITION | 1 | $284.95 | |
| 4 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 5 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 6 | 3005-919 | CDI UNIT ( 370F/C, 440F/C-B ) | 1 | $1,043.95 |
